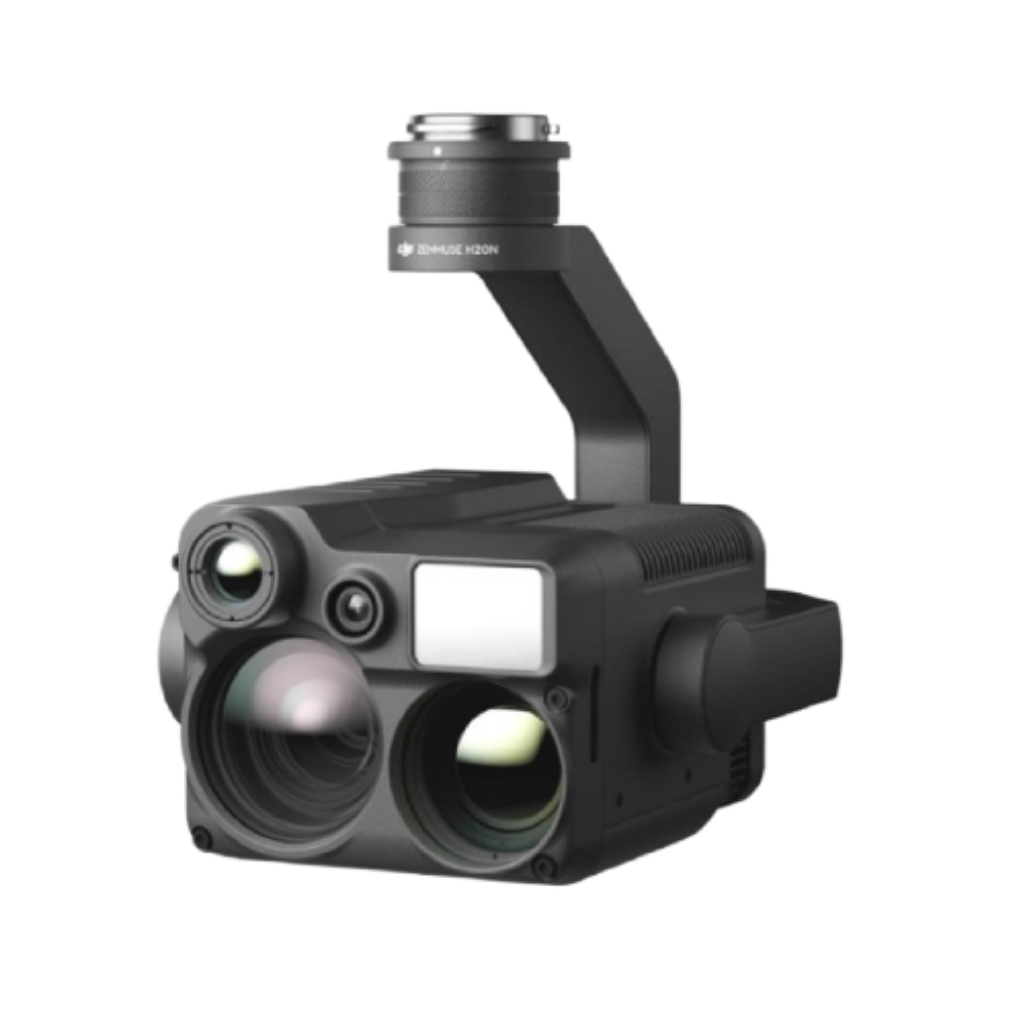

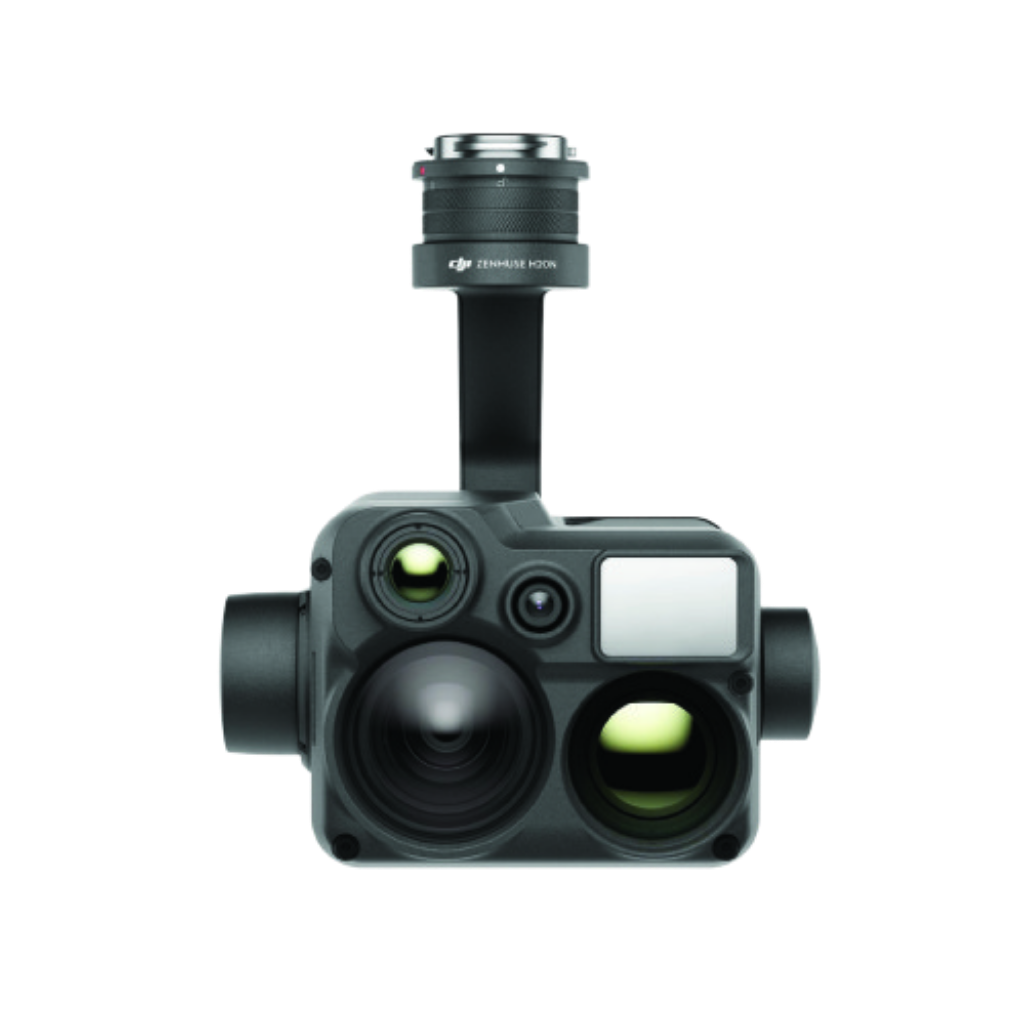

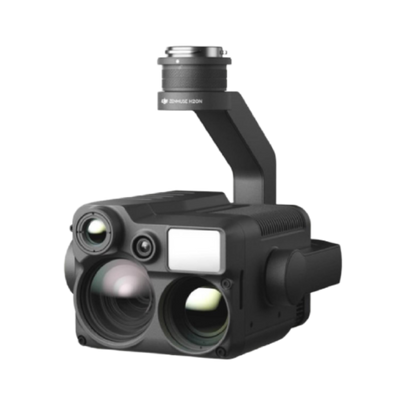

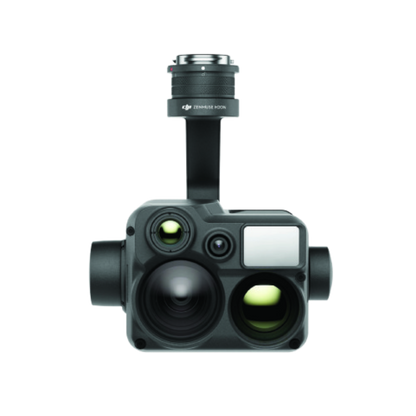

DJI Zenmuse H20N Camera with Enterprise Care Plus

The Zenmuse H20N integrates starlight sensors into its zoom and wide-angle cameras. Pair this with dual zoom thermal cameras and a laser rangefinder, and you have a versatile hybrid payload that rises to the occasion. Intelligent Features include PinPoint, Smart Track, High-Res Grid Photo, and One-tap Panorama

Infrared Zoom

Dual thermal cameras respectively provide 2x and 8x zoom, together enabling up to 32x zoom. Find hotspots and inspect in close detail after zoom-in.

Resolution: 640X512

2x Zoom (Equivalent Focal Length: 53mm)

8x Zoom (Equivalent Focal Length: 196mm)

Thermal and Starlight Vision to Elevate Your Operations

The zoom and wide-angle cameras are equipped with starlight sensors that are tailor-made for low-light environments.

Synchronized Split-screen Zoom

H20N supports synchronized zoom between thermal and starlight night vision cameras. Users can scale both images at the same time. This doubles efficiency and makes it easier to compare details side by side.

Intelligent Features of the Thermal Camera

Temp Alarm: Receive instant notifications when object temperatures exceed your preset alert values.

Isotherms: Visualize a specific band of temperatures to find what is important.

Color Palettes: Adjust the colors applied to the thermal data based on the needs of specific scenarios.

Gain Modes: Adjust gain modes to change the temperature range captured: High Gain Mode covers a smaller temperature range but is more sensitive to temperature differences; Low Gain Mode covers a wider temperature range.

R-JPEG Images: Captured images are in the R-JPEG format with embedded temperature information. By importing these images into DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity and Reflected Temp.

Features:

- Starlight Night Vision

- 640x512 Dual Thermal Cameras with 2x, 8x Optical Zoom

- 20x Hybrid Optical Zoom

- Laser Rangefinder 1200 m Max Range

- Synchronized Split-screen Zoom

- Intelligent Night Scene Enhancement

- IP44 Rating
