SitePro SK Series Pro Automatic Level

These auto-levels feature excellent magnification with large aperture that allows more light for a sharper image. Finely tuned magnetically dampened compensator levels and stabilizes the line of sight despite fine vibrations, providing high precision leveling results.

• Compensator is designed with four suspension wires made of super-high-tensile metal that features minimal thermal expansion coefficient
• Horizontal and vertical cross hairs with 1:100 stadia lines – measures level, alignment & estimates distance
• Fine motion horizontal tangent knobs on left and right sides allow friction braked rotation, endless horizontal drive and precise pointing and angle measurement
• Peep sight to aid in sighting
• Solid leveling metal base with three precision leveling screws provides stability and accuracy in all weather and job site conditions
• 360° Graduated horizontal circle in 1-degree increments for layout applications
• 10’/2mm circular bubble vial with 90-degree mirror for accurate and quick set-up

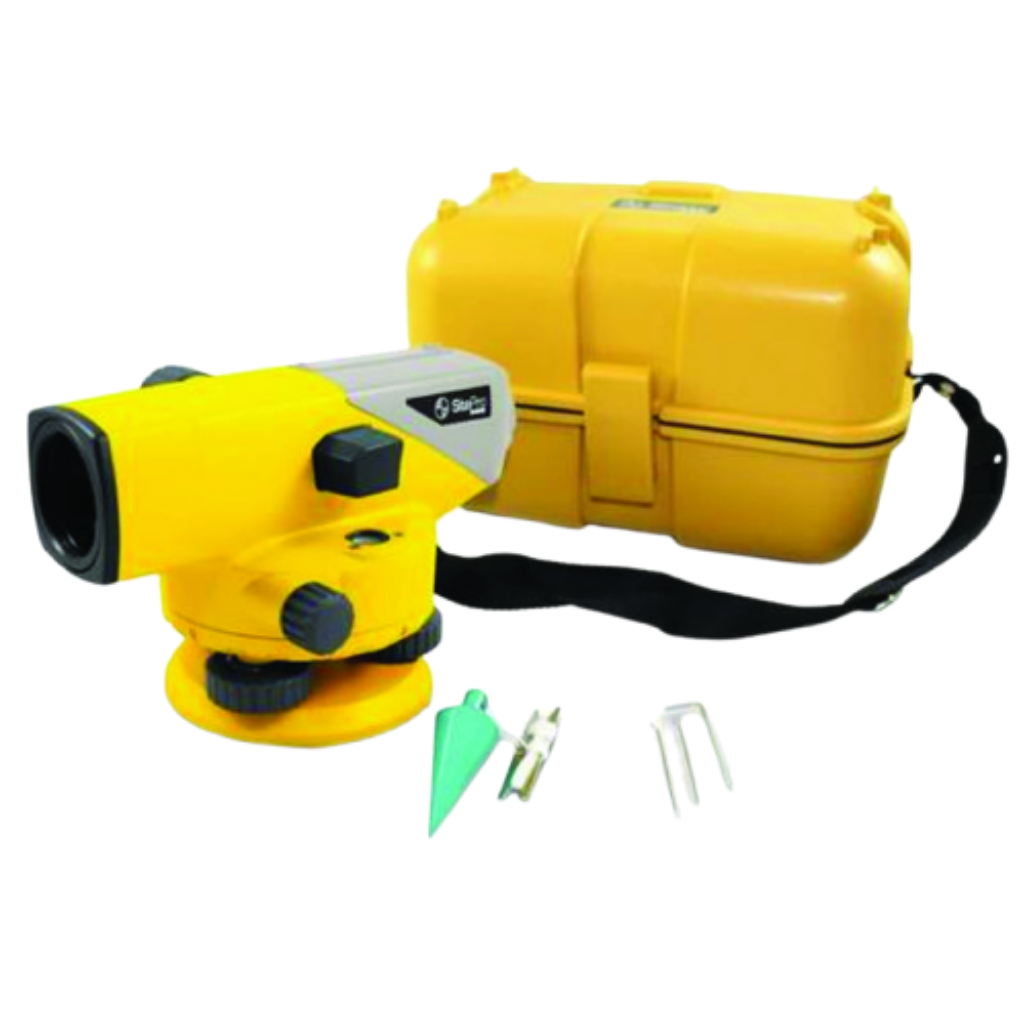

Package Contents: Level, Lens Cover, Plumb Bob, Adjustment Tools, Carrying Case, User Manual

25-SK24X Specifications

• Magnification: 24X
• Leveling Accuracy: ±1/16-in at 150-ft (±1.5mm @ 45m)
• Working Range: 300-ft (90m)
• Angular Accuracy: 1°
• Field of View: 1° 30’ or 2.6ft@100ft
• Min. Focus Distance: < 1-ft
• Compensator range: +/-15’
• Comp Setting: ±0.3”

25-SK28X Specifications

• Magnification: 28X
• Leveling Accuracy: ±1/16-in at 200-ft (±1.5mm @ 60m)
• Working Range: 350-ft (105m)
• Angular Accuracy: 1°
• Field of View: 1° 20’
• Min. Focus Distance: < 1-ft
• Compensator range: +/-15’
• Comp Setting: ±0.3”

25-SK32X Specifications

• Magnification: 32X
• Leveling Accuracy: ±1/16-in at 250-ft (±1.5mm @ 76m)
• Working Range: 400-ft (120m)
• Angular Accuracy: 1°
• Field of View: 1° 20’
• Min. Focus Distance: < 1-ft
• Compensator range: +/-15’
• Comp Setting: ±0.3”
