Reach M2 Multi-band GNSS antenna
$249.00
Shop safely
Secure your shopping experience with various safe and trusted payment methods.
The multiband helical antenna is designed and crafted for precision positioning, covering the GPS/QZSS-L1/L2, GLONASS-G1/G2, Galileo-E1, and BeiDou-B1 frequency bands, including the satellite-based augmentation system (SBAS) available in the region of operation [WAAS (North America), EGNOS (Europe), MSAS (Japan), or GAGAN (India)].

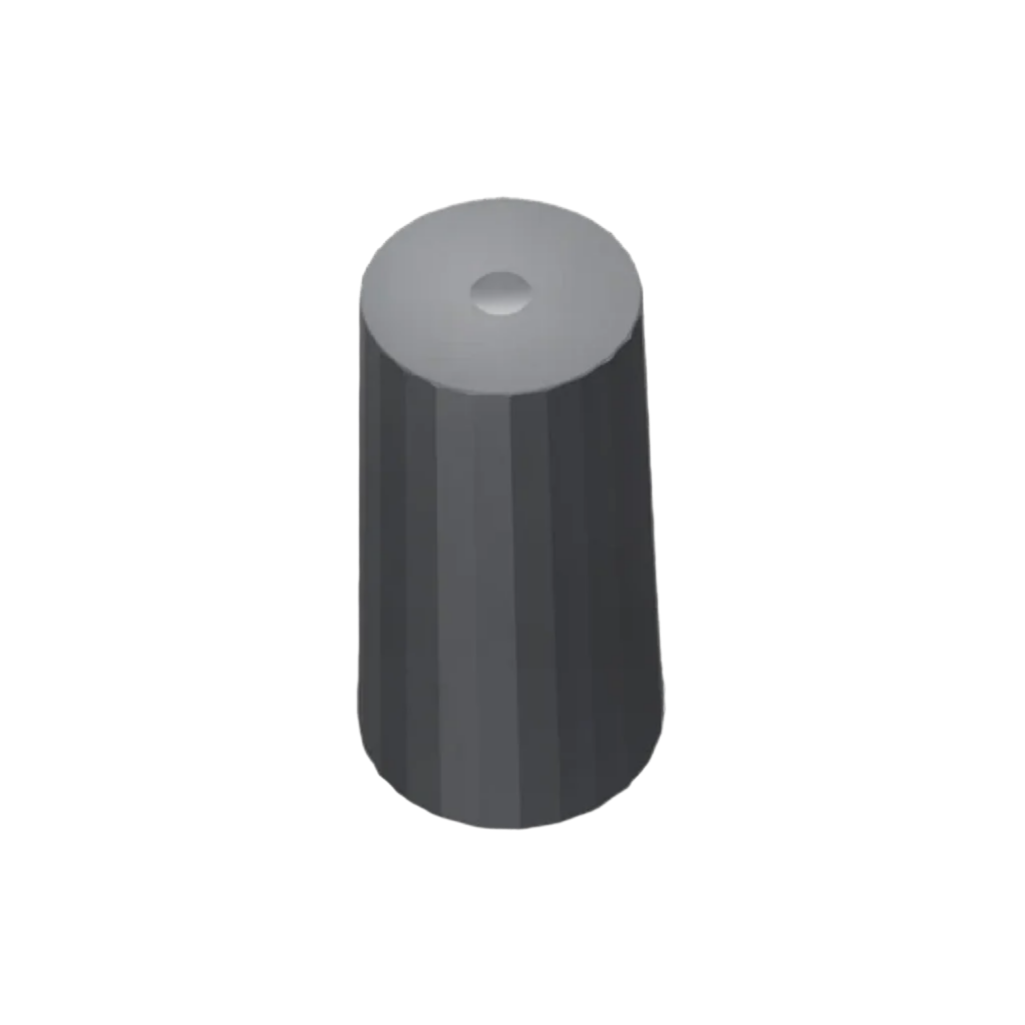

Weighing only 29 g, the lightweight and compact HC871 features a precision-tuned helix element that provides excellent axial ratios and operates without the requirement of a ground plane, making it ideal for a wide variety of applications, including unmanned aerial vehicles (UAVs).

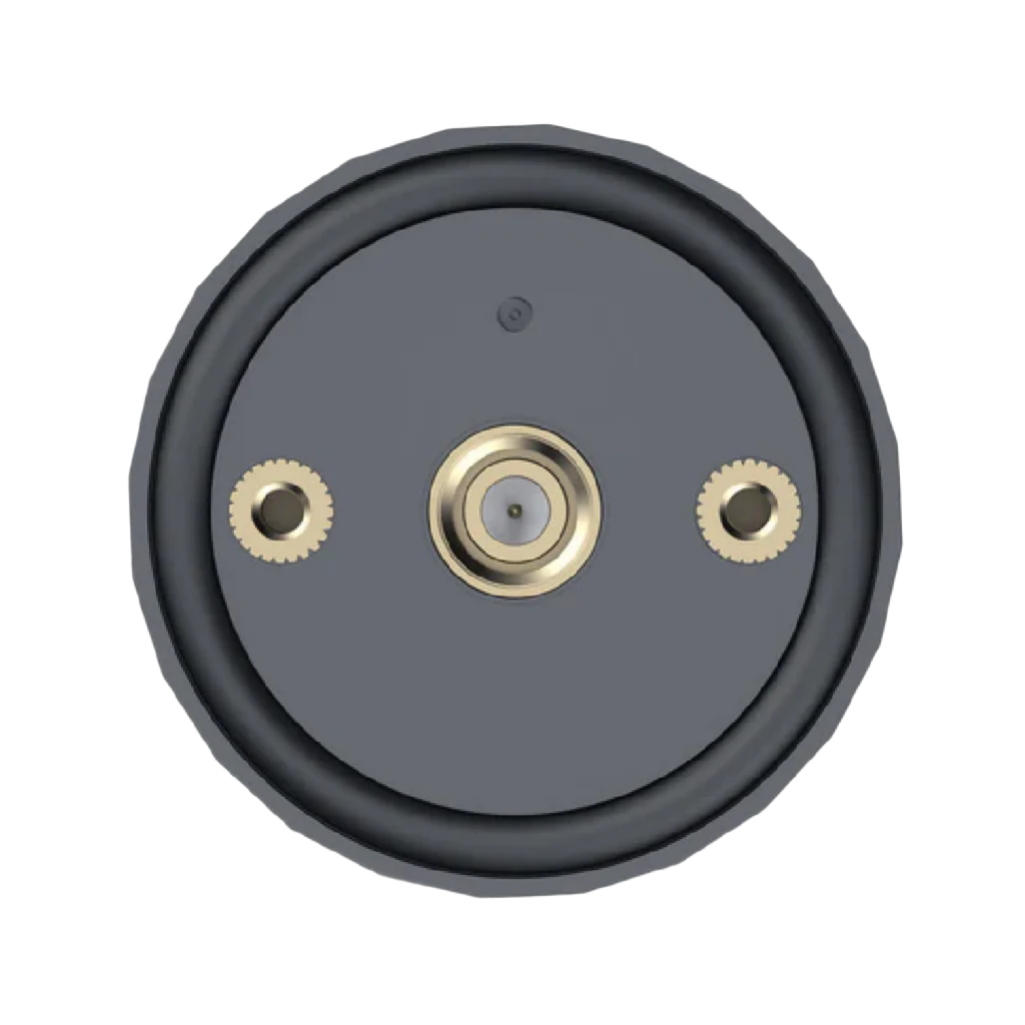

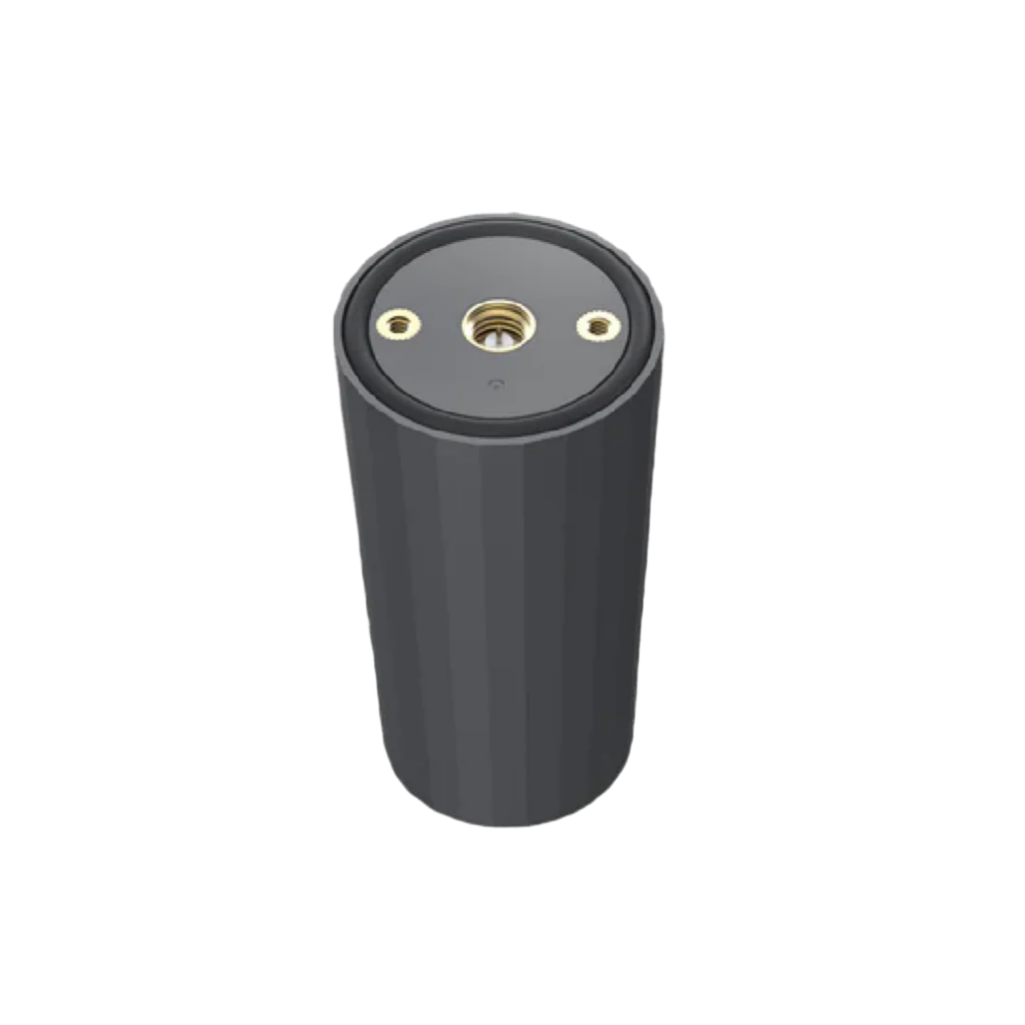

The HC871 features an industry-leading low current, low-noise amplifier (LNA) that includes an integrated low-loss pre-filter to prevent harmonic interference from high-amplitude signals, such as 700 MHz band LTE and other nearby in-band cellular signals. All Tallysman® helical antenna elements are protected by a robust military-grade IP67-compliant plastic enclosure. The enclosure’s base provides two threaded inserts for secure attachment, as well as a rubber O-ring around the outer edge to seal the antenna base and its integrated SMA connector. Tallysman®’s HC871 has passed a rigorous 30-hour vibration test procedure, consisting of five cycles of 2-hour tests per axis (x, y, z):
• Cycle 1: 1.05 Grms;
• Cycle 2: 1.20 Grms;
• Cycle 3: 1.35 Grms;
• Cycle 4: 3.67 Grms;
• Cycle 5: 3.67 Grms.
Coverage
|
MountSurface Mount / Direct Screw |
|
Amplifier Gain
|
|
Features
- Very low noise preamp: 2.0 dB typ.
- Axial ratio: ≤ 0.5 dB at zenith
- LNA gain: 28 dB typ.
- Low current: 15 mA typ.
- ESD circuit protection: 15 kV
- Invariant performance from 2.2 to 16 VDC
- IP67, REACH, and RoHS compliant
Benefits
- Extremely Lightweight (29 g)
- Ideal for RTK and PPP surveying systems
- Excellent RH circular polarized signal reception
- Great multipath rejection
- Increased system accuracy
- Excellent signal-to-noise ratio
- Industrial temperature range
- Rugged design, ideal for harsh environments
