In the box:

• MTS-R1 Robotic Total Station
• M-Survey Permanent Android License
• Power Adapter
• Charging Cable
• Calibration kit (brush, calibration needle, screw driver)
• Dustproof cloth
• 2 x Battery
• OTG adapter
• USB cable
• Reflector Sticker
• Prism

Precision in Motion, Efficiency in Every Point

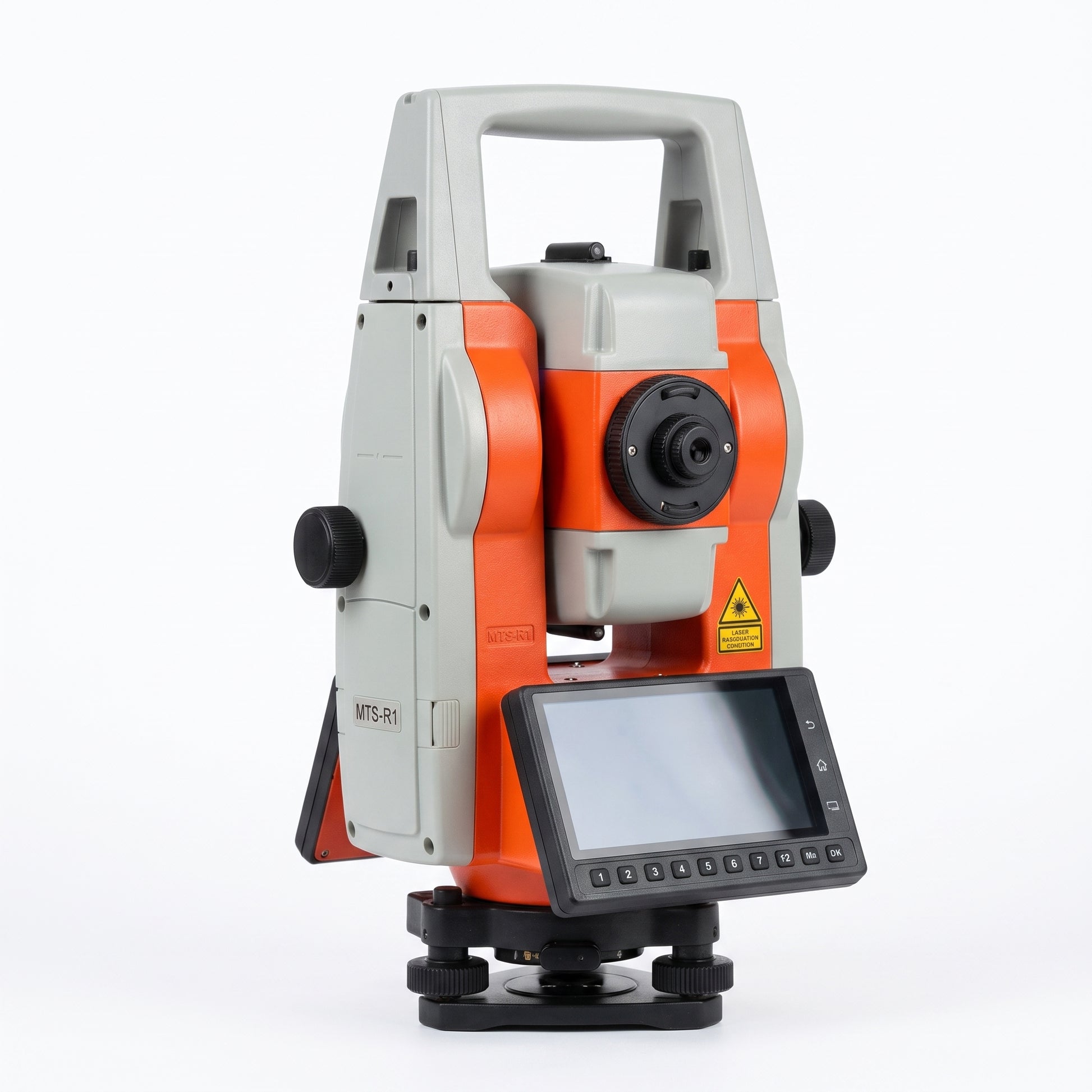

The MTS-R1 Robotic Total Station combines an Android 11 platform with powerful automation for efficient one-person surveying. It features rapid prism search and lock up to 300m, automatic prism recognition for precise 1mm@100m measurements, and seamlessly integrates with RTK data. Designed for tough conditions, it offers long-range control and an intuitive workflow for maximum field productivity.

Fast Long-Range Lock, Reliable Precision

The Automatic Prism Recognition (APR) locates and measures prisms within a 1,200m line of sight, delivering a proven accuracy of up to 1mm at 100m even under tough conditions. Combined with Prism Search, it enables rapid and precise long-range targeting for efficient surveying.

DC Servo Motor & Smooth Positioning

Powered by a high-speed DC Servo Motor (60°/sec) and a direct worm-and-gear drive, the system ensures stable, rapid target tracking with consistent angular accuracy under 1″ for efficient field operations.

Easy to Use, & Clear to See

Navigate with a simple tap on high-definition dual 5.5-inch touchscreens. The telescope features 5-level reticle brightness for clear viewing from low light to direct sun.

True One-Person Operation

Maximize efficiency with a single surveyor. Utilize the long-range remote control and the integrated Prism Plus Position (PPP) mode to operate the MTS-R1 entirely from the prism pole, supported by automated Prism Search, LockNTRack, and APR functions. Standard Prism Mode range: 3,500m.

M-survey Software Operation

M-Survey is a professional surveying and stakeout software with a clean interface and fast learning curve, supporting TXT, DAT, DXF, and DWG formats with strong compatibility. CAD files can be directly imported for stakeout, and large files are handled smoothly to reduce human error and improve efficiency. The software supports online maps with real-time positioning, integrates common functions such as road stakeout, line stakeout, and eccentric measurement, and provides customizable code libraries with rapid coding measurement — enabling one-click code assignment and automatic drafting of identical codes to significantly improve office efficiency.

Application Scenarios

Automated Structural Monitoring
The MTS-R1 provides fully automated structural monitoring, delivering precise detection of minor displacement changes. It continuously recognizes, tracks, and records data even in harsh environments — enabling efficient remote monitoring of bridges, dams, tunnels, and construction sites with minimal manual effort.

Additional use cases include Engineering Surveying, Bridge Surveying, Road Surveying, and Dam Monitoring — making the MTS-R1 a versatile solution across the full spectrum of field survey applications.

Technical Specifications
