Lixel L2 Pro Brochure and Spec Sheet

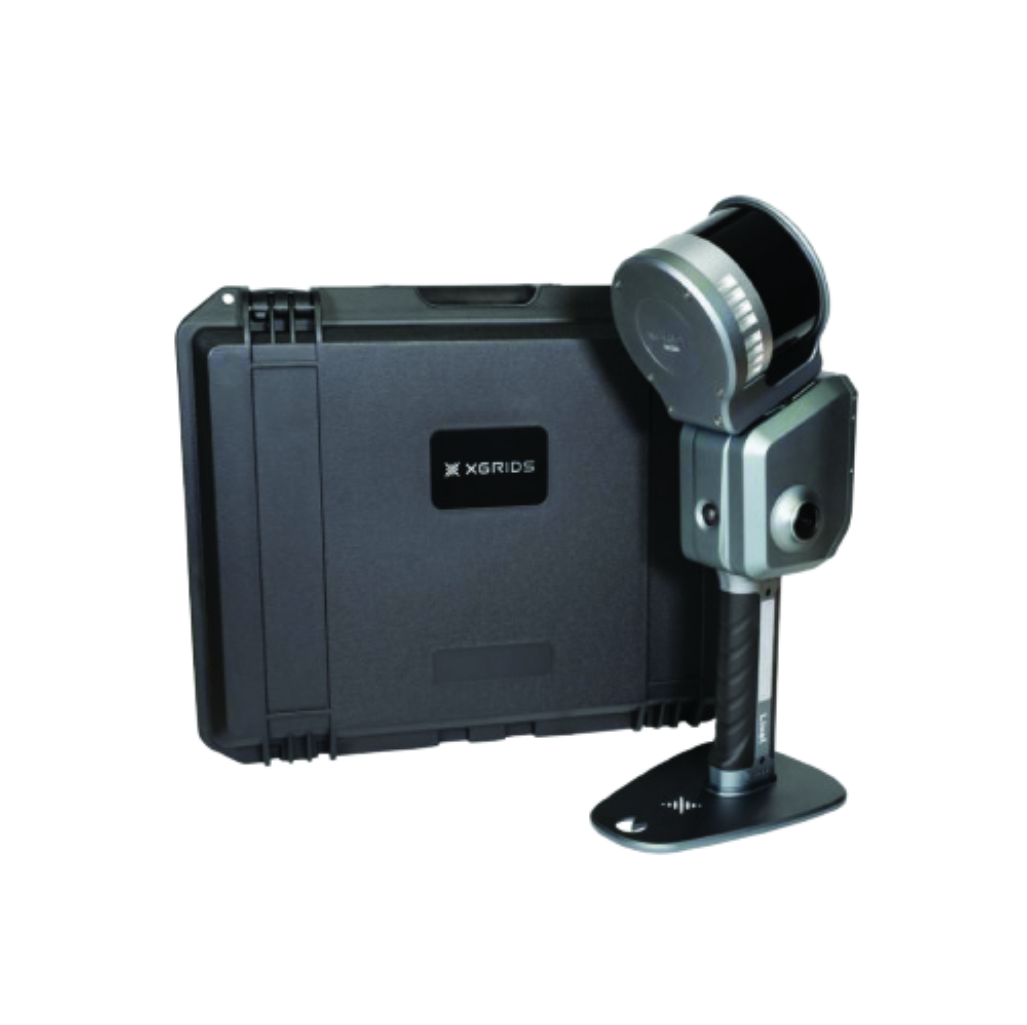

Standard Package:
- L2 Pro Handheld Scanner
- Battery
- Charger & Converter
- GCP Collection Plate
- Type C-USB Cable
- Product Case
- Lixel Studio License
- Quick Start Guide
- Warranty Card
- Cleaning Cloth
Optional Accessories
- RTK Standard Kit
- Survey Grade RTK Kit
- Mobile Phone Mount
- Extension Pole Kit
- Backpack Module
- GCP Collection Plate
- Handheld Battery System

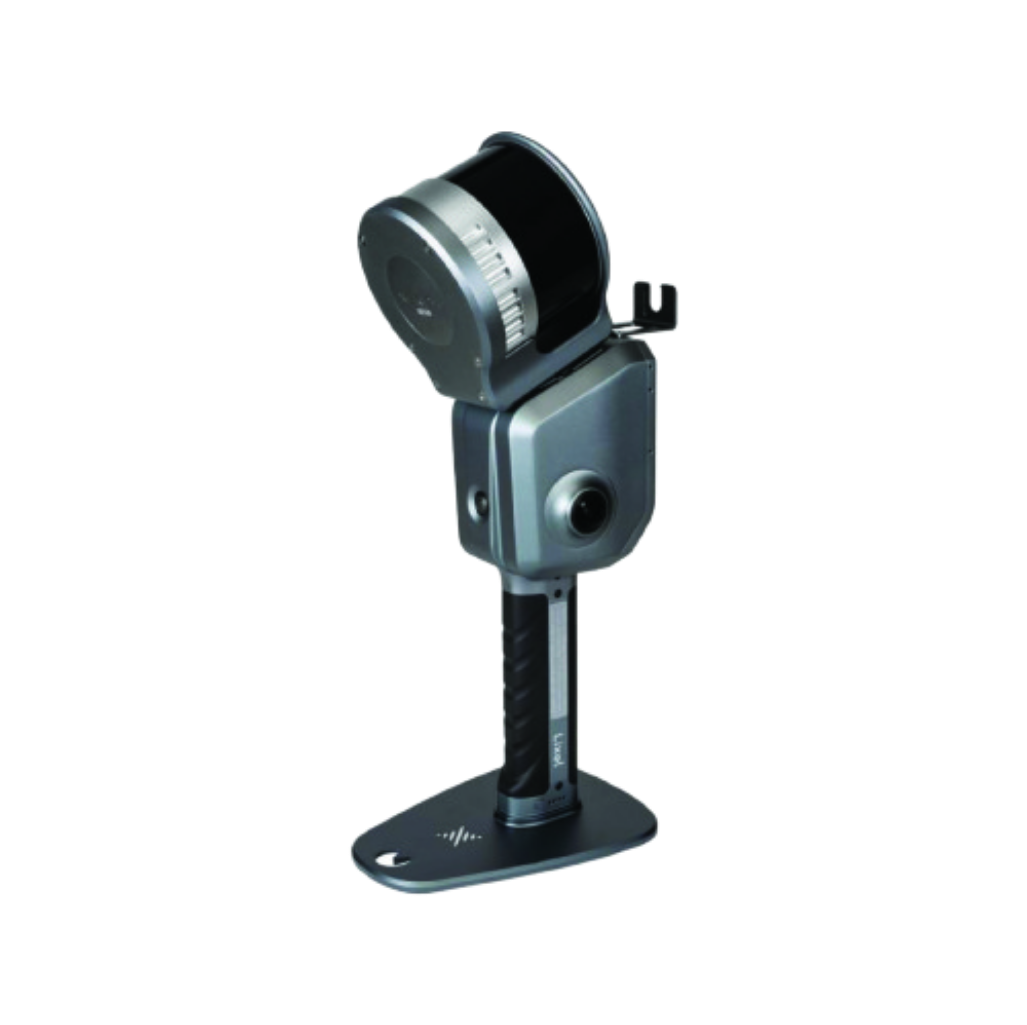

Lixel L2 Pro Specifications
| Product | L2 Pro | K1 |
| Model | 16/120, 32/120, 32/300 | K1 |
| Working Range | ~120m, ~120m, ~300m | 40m |
| Laser Class | Class 1 / 905 nm | Class 1 / 905 nm |
| Laser FOV | 360 x 270 degrees | 360* -7~+52 degrees |
| Scan Speed | 320k points/s, 640k points/s, 640k points/s | 200k points/s |
| Processing Mode | Real-time / Post-processing | Real-time/ Post-processing |
| Operating Temperature | -20~50 C | -20~50 C |
| IP Level | IP54 | IP54 |
| Storage Capacity | 1TB SSD | TF card 256GB (swappable) |
| Operating Time | 90 min | 90 min |
| Protection Level | IP54 | IP54 |
| Handheld Weight | 1.6 kg | 1 kg |
| Visual-Aided Positioning | Supported | Supported |
| Real-Time Colored Point Cloud | Supported | Supported |
| 5G Real-Time Transmission | Supported | Supported |
| RTK Fusion | Supported | Supported |
| Resume Scanning from Breakpoint | Supported | Supported |
| Point Cloud Format | .las | .las |
| Relative Accuracy | +-1.2 cm | +-1.2 cm |
| Absolute Accuracy | 3 cm | 3 cm |
| Repeat Accuracy | 2 cm | 2 cm |
| Number of Cameras | 3 | 4 |
| Power Consumption | <30W | <20W |
| Power Supply | Fast-lock battery/External power | Fast-lock battery |
| Battery Capacity | 46.8wh | 28.8wh |
| Camera FOV | N/A | Color panorama HDV 360*360 degrees |
