Easy Operation, Superior Results
The more capable yet noticeably smaller DJI Dock 2 deploys Matrice 3D or 3TD drones with ease and security. Dock 2 is lightweight, offers high-level operation capabilities, and has cloud-based intelligent functions that bring efficiency and quality to unattended operations.
- Lightweight and Easy to Deploy
- IP55 Ingress Protection
- 10km Max Effective Operating Radius
- Integrated Environmental Monitoring System
- Cloud-Based Modeling
- FlyTo Tasks
- Private Deployment
- Third-Party Payload Support
In the Box:
- DJI 2 Dock Body x 1
- Wind Speed Gauge Model x 1
- Expansion Bold x 4
- Ethernet Cable Connector x 1
- Power Cable Connector x 1
- Wire Ferrule x 6
- Manuals x 1
- Screws, Washers & Tools x 1
- Matrice 3TD Aircraft
- CW Propellers (Pair)
- CCW Propellers (Pair)
- 3D Battery x 1
- 3D Charger x 1
- RC Pro Enterprise x 1
Easy Deployment, Ready To Go
Lightweight Design
DJI Dock 2 is 75% smaller and 68% lighter than its predecessor and is easily transportable with just two individuals, which makes for flexible installation and reduces installation costs.
Efficient Site Evaluation
Before deployment, the aircraft can detect the surrounding environment using vision sensors and quickly determine whether the area has strong GNSS signals. This new vision-based evaluation markedly accelerates site selection, reducing the required time from five hours to twelve minutes or less.
Rugged, Reliable, Recharged
IP55 Dustproof and Waterproof
DJI Dock 2 is designed with safeguarding in mind. With an IP55 dust and water resistance rating, Dock 2 can operate steadily for extended periods even in harsh climates and environments.
Integrated Environmental Monitoring System
DJI Dock 2 integrates multiple sensors, including rainfall, wind speed, and temperature gauges, to perceive real-time weather changes. In conjunction with online weather forecasting, it can provide timely warnings or terminate flight tasks using DJI FlightHub 2 to effectively reduce flight risk.
Improved Landing Stability
With next-gen image recognition technology, the aircraft accurately identifies positioning markers on the landing pad. Additionally, the landing pad's new slide-ramp centering design further facilitates precise landing.
Built-In Backup Battery
In the case of an unexpected power outage, DJI Dock 2 can continue to operate independently for over five hours with the built-in backup battery, leaving sufficient time for the aircraft to return and land.
Six-Month Maintenance Interval
With its high level of protection and reliability, DJI Dock 2 only requires maintenance approximately every six months, effectively controlling human resource costs.
Abnormal Condition Notifications
If DJI Dock 2 and the aircraft encounter task failures or emergencies, DJI FlightHub 2 will immediately send email notifications. This allows operators to accurately trace and troubleshoot problems based on the provided information.
High-Performance Aircraft Models

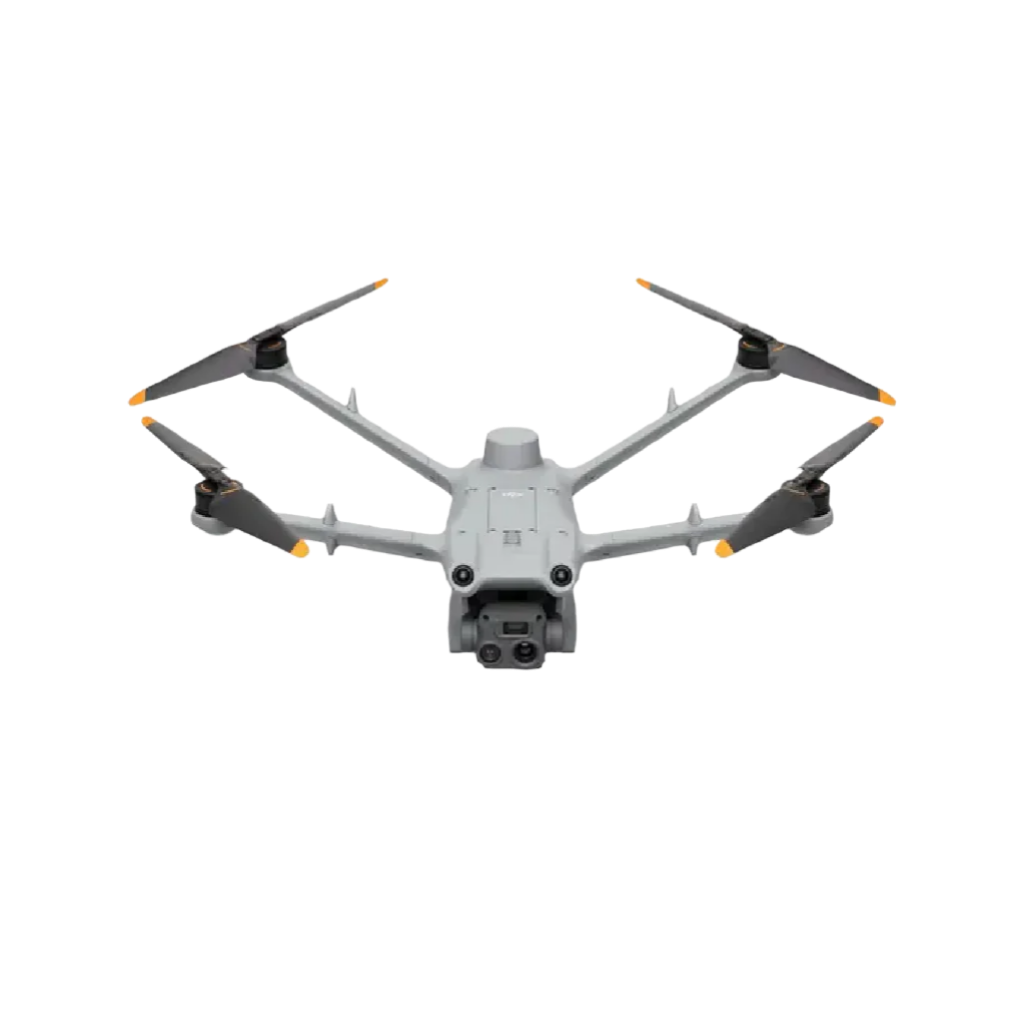

The all-new DJI Matrice 3D/3TD is specifically designed for DJI Dock 2. Matrice 3D is equipped with both a tele camera and a wide-angle camera with a mechanical shutter, meeting the needs for 1:500 high-precision mapping tasks. Matrice 3TD, outfitted with a wide-angle camera, a tele camera, and an infrared camera, can depict both visible light and thermal images, making it suitable for security and inspection operations.
Wide-Angle Camera: 1/1.32-inch CMOS, 24mm Format Equivalent, 48MP Effective Pixels
Tele Camera: 1/2-inch CMOS, 162mm Format Equivalent, 12MP Effective Pixels
Infrared Camera: 40mm Format Equivalent, Normal Mode: 640x512@30fps, UHR Infrared Image Mode: 1280x1024@30fps, 28x Digital Zoom
Superior, Comprehensive Performance
Thanks to its powerful operation capabilities, DJI Matrice 3D meets the requirements of high-standard operations.
- IP54
- 50 Mins
- 6-Directional
- Dustproof and Waterproof
- Max Flight Time
- Obstacle Sensing System
- 10 km
- 400
- Integrated RTK Module
- Max Effective Operating Radius
- Battery Cycles
- ±3cm Positioning Accuracy
Steady Operation, Uncompromised Efficiency
Quick Takeoff
DJI Dock 2 integrates dual RTK antennas, allowing the aircraft to obtain accurate RTH location information without waiting for the RTK data to converge. It also performs a complete propeller inspection and takeoff in as short a time as 45 seconds, quickly entering operational status.
Quick Charging
DJI Dock 2 charges the aircraft from 20% to 90% in just 32 minutes for efficient powering for consecutive operations.
Dual-Camera Monitoring
DJI Dock 2 features an internal and an external fisheye camera to achieve real-time display. Close monitoring within and outside the dock allows the operator to remotely observe weather conditions, environmental circumstances, and the aircraft's takeoff and landing.
Cloud-Based Operation, Maximum Control
Cloud Mapping
After the aircraft completes its flight task, DJI FlightHub 2 generates high-precision 3D models based on the collected flight data, authentically restoring the operating environment. These models can be annotated, measured, and downloaded.
Flight Route Editor
Utilizing high-precision 3D models, operators can conduct visual flight route editing from a first-person perspective and preview simulated imaging results. This facilitates intuitive and efficient operations and enhances flight route planning and accuracy.
AI Spot-Check
Utilizing high-precision 3D models, operators can conduct visual flight route editing from a first-person perspective and preview simulated imaging results. This facilitates intuitive and efficient operations and enhances flight route planning and accuracy.
FlyTo Tasks
DJI FlightHub 2's FlyTo tasks utilize high-precision 3D models to automatically plan the optimal flight route. Before an urgent task, the operator only needs to click on the subject, and the aircraft will fly to the destination via an efficient and safe route.
Live Flight Controls
Based on DJI FlightHub 2 or a third-party cloud platform, even if DJI Dock 2 is deployed in a remote region, the operator can still control the flight and gimbal angle via keyboard and mouse.
Obstacle Bypass
When performing automatic flight tasks, the aircraft utilizes omnidirectional obstacle sensing and automatic obstacle bypass functions to enhance the success rate of flight tasks.
Open Ecosystem, Extensive Capablities
Third-Party Payloads
Add even more functionality, connect to third-party payloads such as loudspeakers and spotlights via the aircraft's E-Port, and remotely control added payload via DJI FlightHub 2. Additionally, the aircraft's E-Port Lite supports connection to a parachute for increased flight and personnel safety.
Edge Computing
DJI Dock 2 has an edge computing expansion interface that enables the pre-processing of media files and more to improve operational efficiency further.
Private Deployment with Cloud API
Tailor a customized management system for DJI Dock 2 with Cloud API or quickly connect it to a third-party cloud platform, facilitating efficient and convenient private deployment.
Cloud-To-Cloud Coordination
Through DJI FlightHub 2's FlightHub Sync function, users can easily link it to a third-party cloud platform for flexible management of operation data.
DJI Terra API
With the DJI TerraAPI, users can now integrate the powerful mapping capabilities of DJI Terra into their own dock management systems. This enables automated 2D/3D reconstruction and customized photo mapping workflows, allowing the operation results of DJI Dock 2 to better meet the needs of a wide variety of industry applications.
