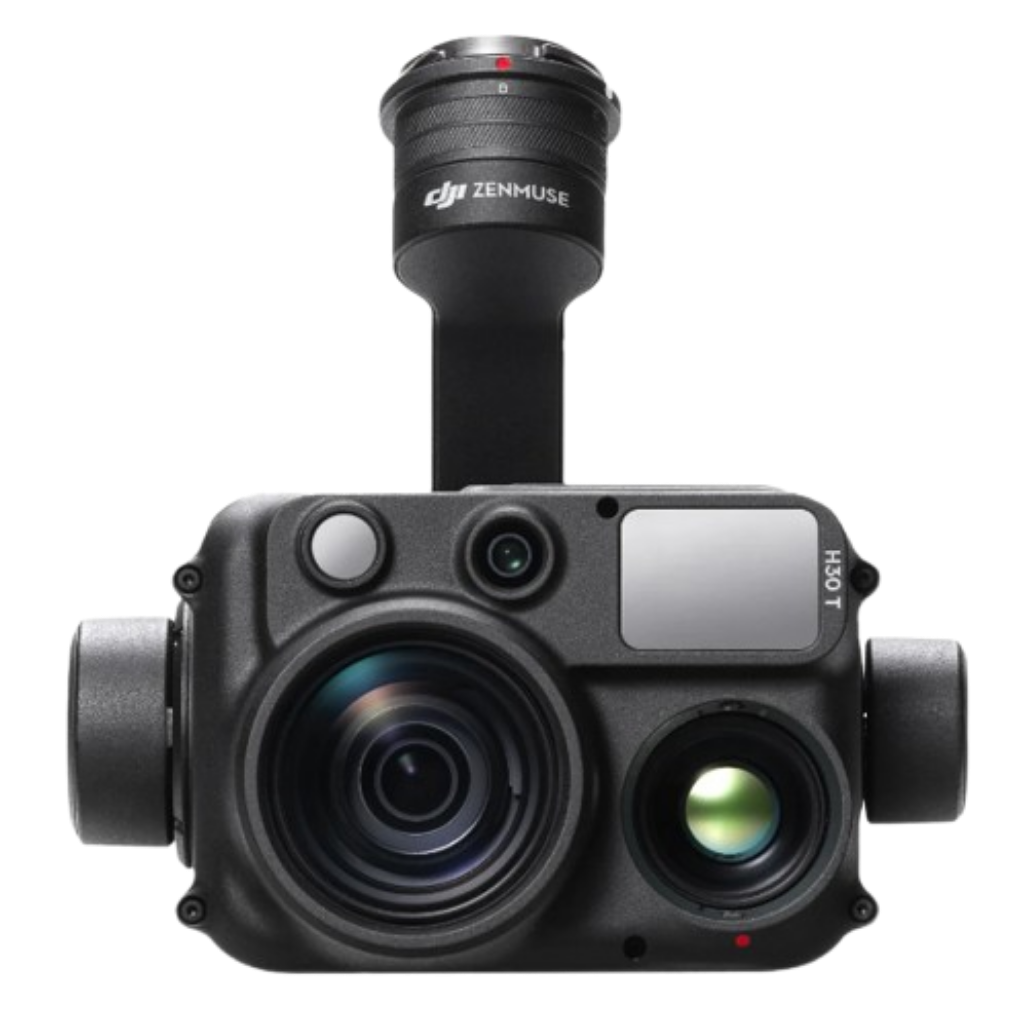

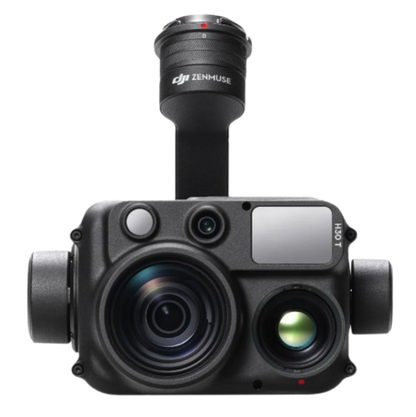

DJI Zenmuse H30T with 1 Year Care Basic

DJI Zenmuse H30T with 1 Year Care Basic

Regular price
$9,460.00
Sale price
$9,460.00
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.



DJI ZENMUSE H30 SERIES

UNPARALLELED VISION, DAY OR NIGHT

The all-weather, multi-sensor flagship Zenmuse H30 Series integrates five major modules—a wide-angle camera, a zoom camera, an infrared thermal camera, a laser range finder, and an NIR auxiliary light. Employing cutting-edge intelligent algorithms, it revolutionizes perception and imaging standards, transcending the limitations of day and night vision. This makes it effortlessly suitable for a variety of operations, including public safety, energy inspection, water conservation, and forestry

  • FURTHER AND CLEARER VISION
  • ENHANCED NIGHT VISION
  • MORE POWERFUL INFRARED PERFORMANCE
  • SMARTER MULTI-SCENARIO OPERATIONS
  • SUPERIOR ENVIRONMENTAL ADAPTABILITY
  • MORE RELIABLE INFORMATION SYNC AND RETENTION

VERSATILE PERFORMANCE, DAY AND NIGHT

WIDE-ANGLE CAMERA

Featuring a 1/1.3-inch CMOS sensor with an impressive 48MP effective pixel count, the wide-angle camera delivers crisp and detailed images even in challenging lighting conditions.

SUPERIOR ZOOM CAMERA

With a 1/1.8-inch CMOS sensor and 40MP effective pixel count, the zoom camera provides unparalleled clarity and precision, offering up to 34x optical zoom and 400x digital zoom capabilities.

POWERFUL INFRARED THERMAL CAMERA (H30T ONLY)

Boasting a resolution of 1280x1024, the infrared thermal camera enables precise temperature measurements and detection, with an expanded temperature measurement range from -20°C to 1600°C (-4°F to 2912°F).

LASER RANGEFINDER (LRF)

Offering a measurement range of 3-3000m (~9842 ft), the laser rangefinder provides accurate distance measurements, enhancing situational awareness and mission efficiency.

NIR AUXILIARY LIGHT:

Supporting night operations, the NIR auxiliary light ensures optimal visibility in low-light conditions, further augmenting the Zenmuse H30 Series' capabilities.

FURTHER AND CLEARER VISION

The Zenmuse H30 Series features a high-resolution 40MP zoom camera, supporting up to 34× optical zoom and an incredible 400× digital zoom. Compared to the previous generation, it not only observes subjects at greater distances but also captures more details.

MORE STABLE IMAGERY FROM THE ZOOM CAMERA

With DJI's latest image stabilization algorithm, the Zenmuse H30 Series can effectively diminish shake in telephoto footage, delivering stable and clear imagery for detailed power line inspections.

MAX 3000M LASER RANGE FINDER

The laser range finder boasts a measurement range up to 2.5 times greater than the previous generation, accurately capturing the position information of subjects within a range from 3 m to 3000 m, including linear distance from the camera, altitude, and GPS coordinates.

ENHANCED NIGHT VISION

Both the zoom and wide-angle cameras of the Zenmuse H30 Series can switch to Night Scene mode in low-light conditions, enhancing live view and recording quality. This ensures operational efficiency and accuracy at night, enabling continuous operation from day to night.

SUPPORTS BLACK AND WHITE NIGHT VISION AND NIR ILLUMINATION

In Night Scene mode, the Zenmuse H30 Series zoom camera supports IR Light for infrared enhancement and NIR illumination. It switches the live feed to a grayscale image by removing the IR filter, thereby strengthening the contrast between light and dark areas, making it easier to locate subjects. When the NIR auxiliary light is enabled, the zoom camera can benefit from additional NIR illumination, which is especially helpful for covert night surveillance and search-and-rescue operations.

MORE POWERFUL INFRARED PERFORMANCE

The infrared thermal camera boasts a resolution of 1280×1024, 4× the previous generation, with up to 32× digital zoom. This allows for both an overview of the entire scene and the ability to zoom in on specific areas. At higher zoom levels, the Zenmuse H30T automatically activates a UHR (Ultra-High Resolution) Infrared Image function, ensuring the infrared images remain clear.

HIGH-RES MODE FOR PRECISE OBSERVATION

Zenmuse H30T supports three infrared gain modes: High Gain mode for more precise temperature measurement, Low Gain mode for a wider temperature measurement range, and the new High-Res mode, which is especially useful for observing objects, people, or animals with small temperature differences, making it highly practical for security, emergency, and search-and-rescue operations.

VISUAL AND IR CAMERAS SIMULTANEOUS ZOOM

The Zenmuse H30T's zoom camera and infrared thermal camera support Link Zoom, allowing operators to scale the visible light and thermal images in tandem and maintain the same viewpoint. This side-by-side comparison of image details helps locate the subject faster, increasing efficiency while saving effort.

TEMPERATURE MEASUREMENT RANGE FROM -20° TO 1600° C (-4° TO 2912° F)

With the installation of an infrared density filter, the infrared thermal camera can measure temperatures up to 1600° C (2912° F), 3× the previous generation. This is particularly useful for firefighting and high-temperature operations as it allows for more effective judgment of temperature changes and rapid locating of hotspots, increasing rescue efficiency.

ZENMUSE H30 VS. H20 SERIES: ELEVATING PERFORMANCE

Compared to its predecessor, the Zenmuse H20 Series, the H30 Series introduces several enhancements that elevate its performance to unprecedented levels, including:

Superior Visible Light Capability: With up to 34x optical zoom and 400x digital zoom, the H30 Series offers enhanced clarity and detail, enabling drone pilots to capture intricate details from afar.

Enhanced Thermal Imaging: The H30T model features a significant improvement in thermal imaging capabilities, with a resolution boost from 640 × 512 to 1280 × 1024, and an extended temperature measurement range, opening up new possibilities for thermal inspections and analysis.

Night Scene Mode: The H30 Series introduces enhanced night scene modes with adjustable settings at 25fps, 15fps, and 5fps, coupled with support for NIR auxiliary light illumination, ensuring optimal performance in low-light environments.

Laser Rangefinder: The laser rangefinder of the Zenmuse H30 Series extends the detection range up to 3000m (~9842ft), providing users with enhanced situational awareness and precise distance measurements.

Compatible with the DJI Matrice 350 and Matrice 300 (only with DJI RC Plus), the H30 Series is set to revolutionize countless applications across public safety, energy inspection, asset management, forestry, and more. Interested in learning more about how to enhance your operations with the DJI Zenmuse H30
