Carrying Case Options: The RS3 includes a soft carrying case which can hold the RS3, radio antenna, and USB-C cable. A hard case option is available as well: Emlid Reach RS3 Hard Carrying Case. The Hard Case fits 2 RTK receivers, a tablet, radio, extension pole, and charging cables.
Data Collector Options: The Emlid Flow application is available for download for free on both iOS and Android. 3 months of Emlid Flow +Survey are included with your purchase of the RS3. You can use any iOS or Android device. The E38 Vivid Tablet with Mount is a tablet that works in any environment.
Support Options: Choose email support and receive unlimited email support, along with 30 days of phone support. Choose Unlimited Phone Support for 1 year of phone support.
Data Collector Compatibility
There are a wide range of data collectors that are compatible with the RS3, though only Emlid Flow can utilize the tilt compensation. The most popular data collectors for the Reach RS3 are:
RTK GNSS receiver with tilt compensation
Survey grade precision, even in hard-to-reach spots
- Multi-band base and rover
- IMU tilt compensation
- LTE modem
- Dual-band radio
Accurate results even with large tilt angles
The IMU-based title compensation in Reach RS3 enables you to make measurements with up to 60 degrees of tilt while still saying within 20 mm of accuracy.
Reach RS3 continuously measures and corrects tilt in real-time to keep you on target.
Survey and stakeout faster, no need to check the bubble

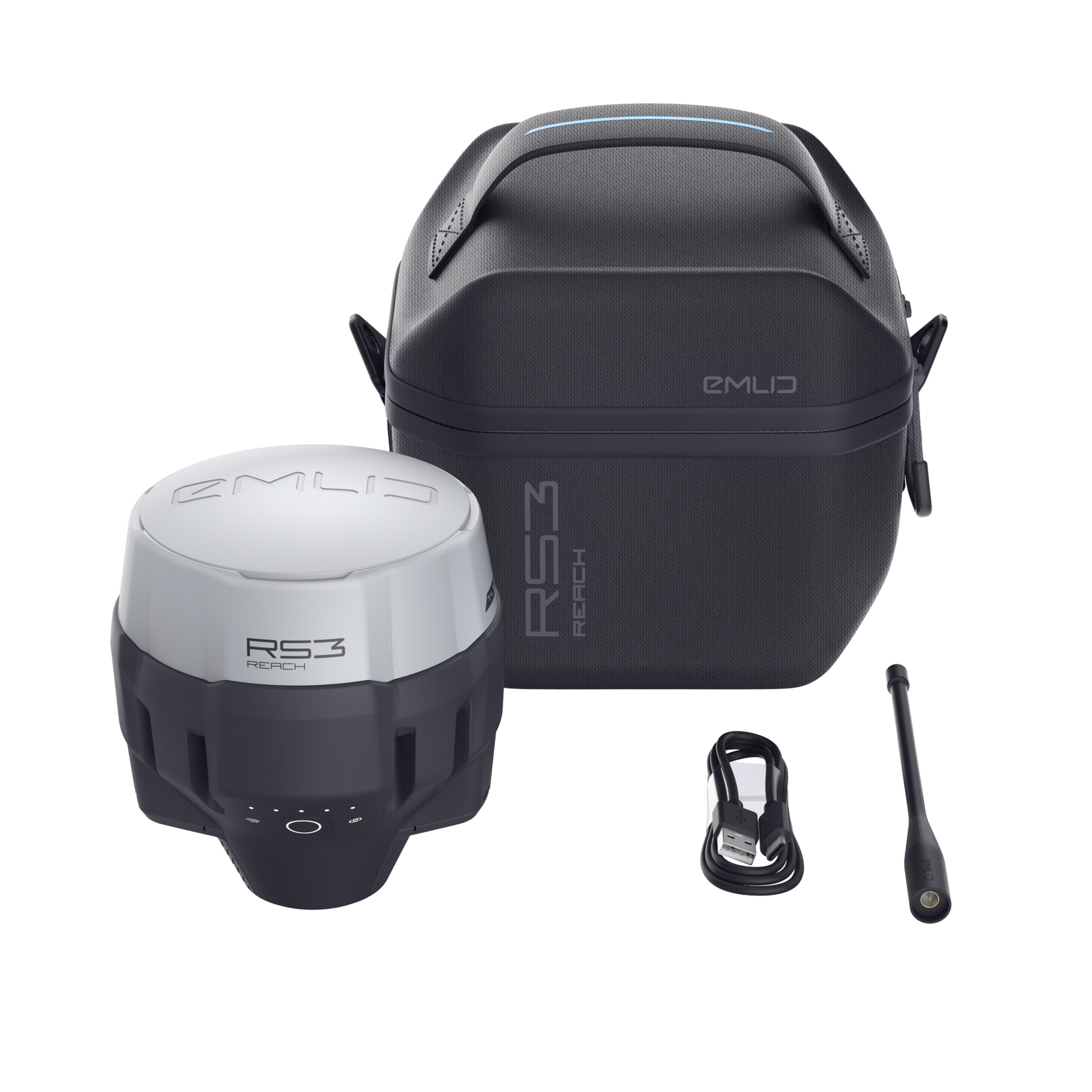

In the package:
- Reach RS3
- LoRa/UHF antenna
- USB cable
- Carrying case with a strap

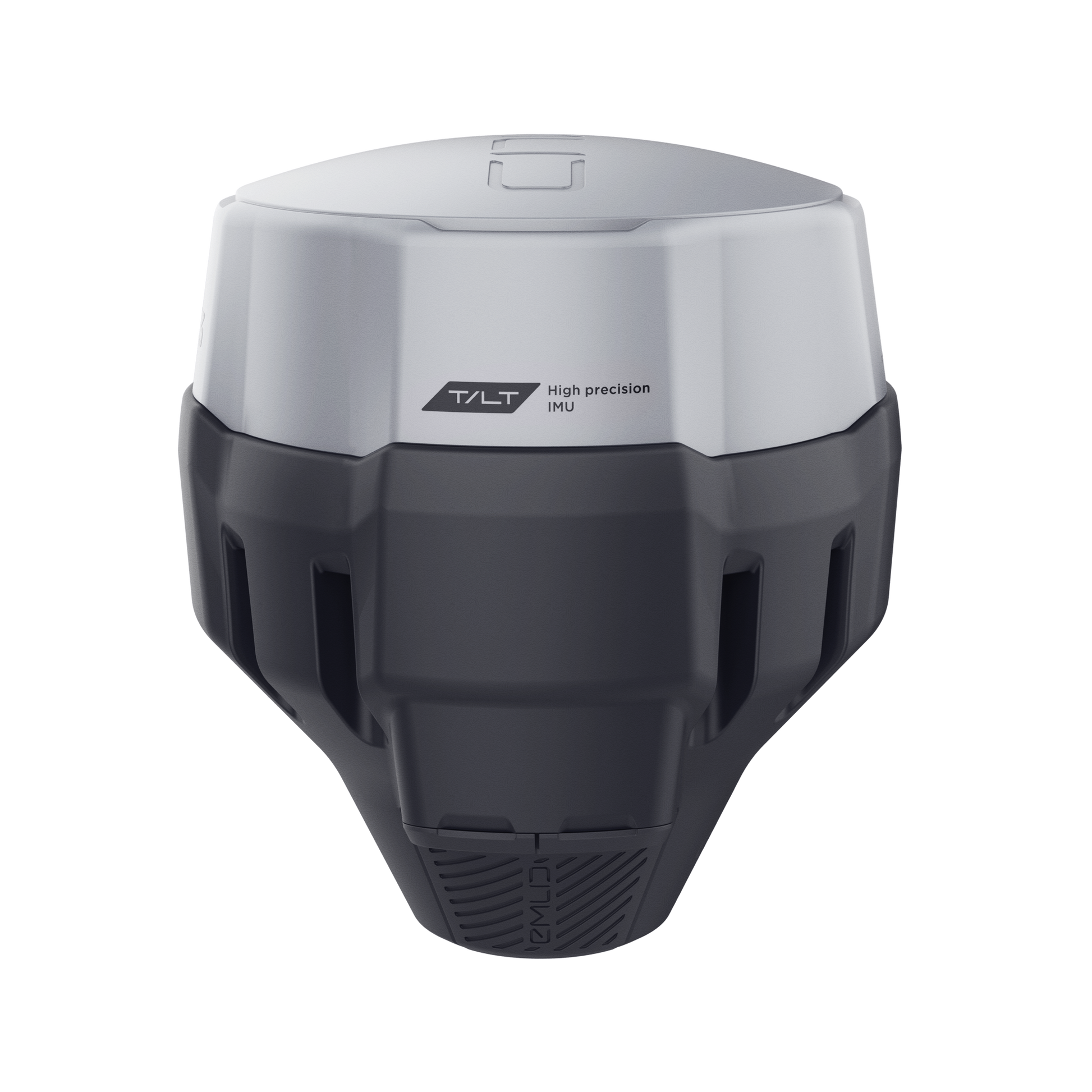

Effortless and Robust Tilt Compensation
We calibrate each unit individually at the factory, so you can get your Reach RS3 up and running right out of the box.
Immune to magnetic disturbances
Unaffected by magnetic fields, the RS3 provides robust tilt compensation even when working close to metal structures.
Tilt initialization takes about 20 meters of walking or 10-20 seconds of tilting. Usually ready on the way from the car.
Rapid and Reliable GNSS receiver
Gets a fix in 5 seconds
Reach RS3 gets a centimeter-accurate solution in about 5 seconds. It maintains robust performance even when the sky view is partially obstructed, or the receiver itself is tilted.
GPS/QZSS, GLONASS, BeiDou, and Galileo
L1C/A, L2C, L1OF, L2OF, B1I, B2I, E1B/C, E5b
RINEX logging and PPP support
Record raw data in the RINEX format for post-processing. You can use free PPK software, Emlid Studio, or any other software that supports RINEX. Logs are also compatible with OPUS, AUSPOS, and PPP services, so you can get highly accurate results anywhere in the world.
16 GB storage
160+ days of logging at 1 Hz
Up to 22 hours on 1 charge
Reach RS3 comes equipped with a built-in, industrial-grade battery that can endure up to 22 hours of logging or 18 hours of working with tilt in RTK.
For uninterrupted multi-day operation, simply connect a power bank, just like you would with your mobile phone.
Charging via USB-C
Built-in LTE modem
Insert a SIM card into your Reach RS3 and let it broadcast or receive corrections via NTRIP.
Get corrections from CORS, Reach, or 3rd-party base
NTRIP -Base and Rover
Work in RTK with VRS or a single baseline CORS network. You can also connect another GNSS receiver as an NTRIP base using Emlid NTRIP Caster.
Compatibility - Any receiver with RTCM3 support
Dual-band radio : LoRa 868/915 MHz Base and Rover
Perfect for areas with no internet coverage for NTRIP. LoRa is used when connecting Emlid receivers over the radio.
Compatibility - All Emlid receivers with built-in radios.
UHF 450 MHz Rover
An option to mix and match RTK receivers within your fleet. You can configure your Reach RS3 to receive corrections from an existing base.
You can also use a high-power external radio on your Reach base and connect with the UHF radio receiver in Reach RS3.
Compatibility - Bases with radios that transmit TRIMTALK 450S (*TRIMTALK is a trademark of Trimble Inc.)
Comes with software for the field or the office
Emlid Flow efficiently manages all field-related tasks, including receiver configuration, RINEX logging, data collection, and stakeout.
For iOS and Android. The basic features are available for free to all users. Upgrade your Emlid Flow and Flow 360 with a single subscription.
- Tilt Compensation
- Data collection and stakeout
- Background maps
- Base and rover setup
- Sync up to 3 devices
- Base shift
- CSV, DXF, SHP export and import
Emlid Flow 360
You can access your survey data via the cloud-based Emlid Flow 360, which allows you to prepare, manage, and export your projects from a browser.
The basic features are available for free to all users. Upgrade your Emlid Flow and Flow 360 with a single subscription.
- Add WMS/WMTS layers
- Satellite map
- Create custom survey codes libraries
- Export and import of survey data
- Project management and sync
Free post-processing software for macOS and Windows.
- Kinematic processing
- Static processing
- RTK Drone data processing
- Raw data analysis
- Stop & Go with Emlid Flow
Connect up to 10 rovers to your base station via the internet or set up your own NTRIP network with Emlid Caster.
- Available for free and works worldwide
- Works with Reach and other receivers with NTRIP support
- RTCM3 and other correction formats support
- Up to 5 bases and 10 rovers at the same time
Rugged and compact
IP67: RS3 is waterproof up to a one meter depth. Silicone plugs completely seal and protect all connectors from water and dust.
Industrial battery: The Reach RS3 Li-Ion battery handles high and low temperatures well and over 2000 cycles of charging and discharging while maintaining its original capacity. While others are hot-swapping batteries, your Reach just keeps working.
20 to +65 ºС: We extensively tested Reach RS3 in conditions that simulate the coldest winters and hottest summers.
Impact-resistant: The body of the Reach RS3 is made of polycarbonate and coated with elastomer. The combination of these materials makes your Reach RS3 drop resistant and ready for the harshest conditions.
- Dimensions 126 x 126 x 142 mm
- Weight 950 g
- Operating temperature -20 to + 65 ºC
- Ingress protection IP67
- Autonomy 18 hrs as an RTK rover with tilt, 22 hrs of logging
- Battery Li-Ion 5200 mAh, 7.2 V 37.44 Wh
- Charging USB Type-C 5 V, 3 A
- Static H: 4 mm + 0.5 ppm V: 8 mm + 1 ppm
- PPK H: 5 mm + 0.5 ppm V: 10 mm + 1 ppm
- RTK H: 7 mm + 1 ppm V: 14 mm + 1 ppm
- Tilt RTK + 2 mm + 0.3 mm/°
- Convergence time ~5 s typically
|Radio||LoRa transmit and receive|
|Frequency range||868/915 Mhz|
|Power 0.1 W|
|Distance Up to 8 km|
|Frequency range||41-470 MHz|
|Protocols TRIMTALK 450S*|
|Modulation type GMSK|
|Bands||FDD-LTE: 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 26, 28, 66|
|TD-LTE: 38, 40, 41|
|UMTS (WCDMA/FDD): 1, 3, 2, 4, 5, 6, 8, 19|
|Quad-band, 850/1900, 900/1800 MHz|
|SIM card Nano-SIM|
- Wi-Fi 802.11 b/g/n
- Bluetooth 4.0/2.1 EDR
- Ports RS-232, USB Type-C
- Ports RS-232, USB Type-C
- Position output NMEA, LLH/XYZ
- Data logging RINEX, NMEA, LLH/XYZ, UBX
- Internal storage 16 GB ; 160+ days of logging at 1 Hz
- Signal tracked GPS/QZSS L1C/A, L2C, GLONASS L1OF, L2OF, BeiDou B1I, B2I, Galileo E1B/C, E5b
- Update rates up to 10 Hz
- Number of channels 184
- IMU 6DOF
