Pre-Order the Emlid Reach RS4 Pro
$100.00
Regular price
$100.00
Sale price
$100.00
Regular price
Unit price
per
Shipping calculated at checkout.
Pre-order the Emlid Reach RS4 Pro to be first in line on the new RS4 Pro. The deposit will go toward the purchase of the RS4 Pro.
Pre-order and receive a Quick Release Adapter free.

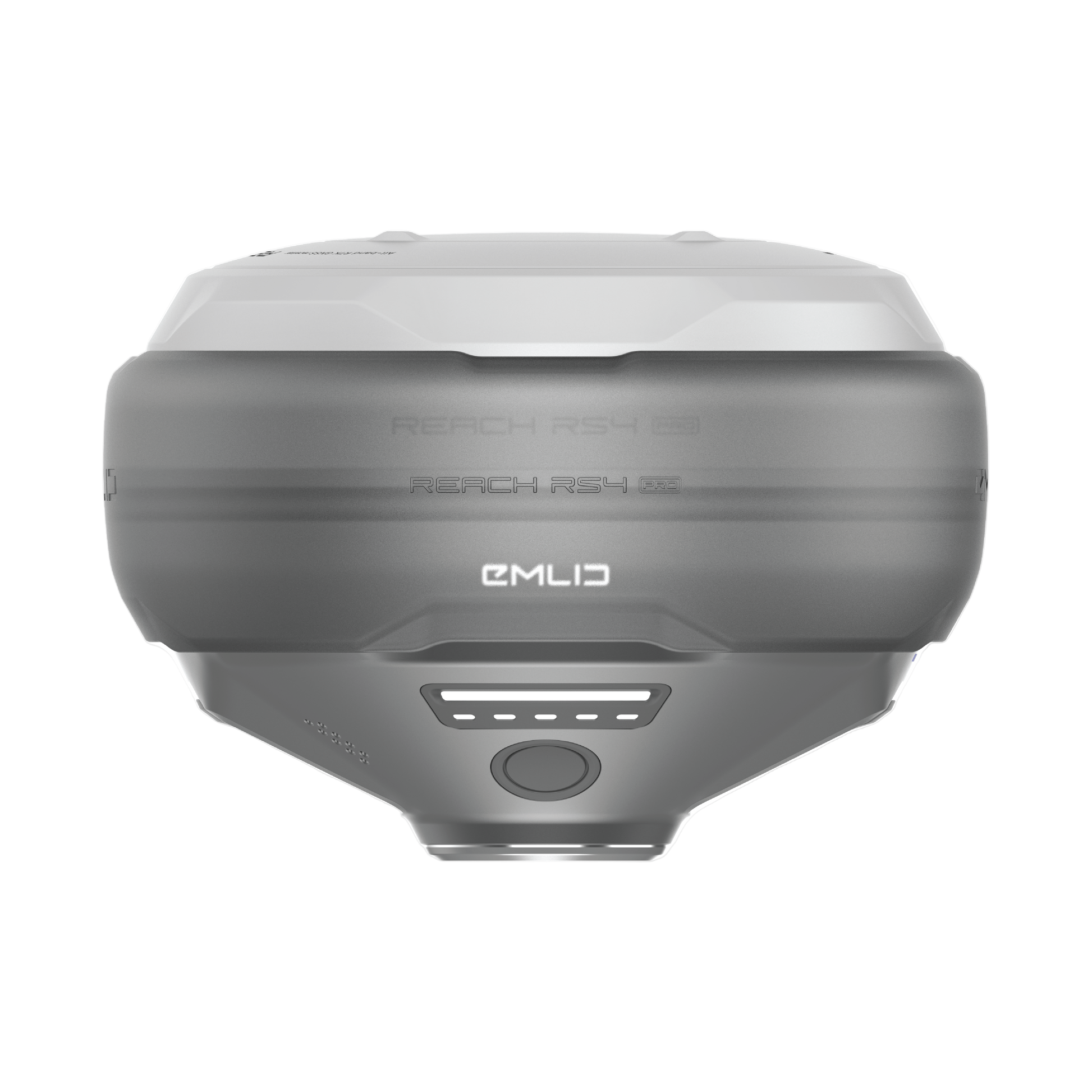

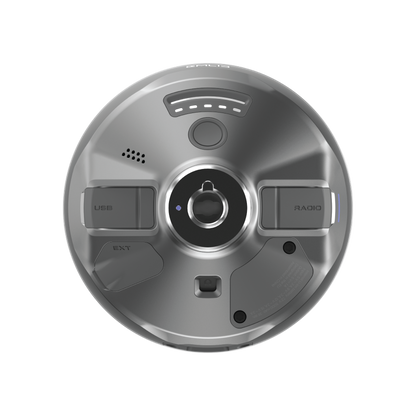

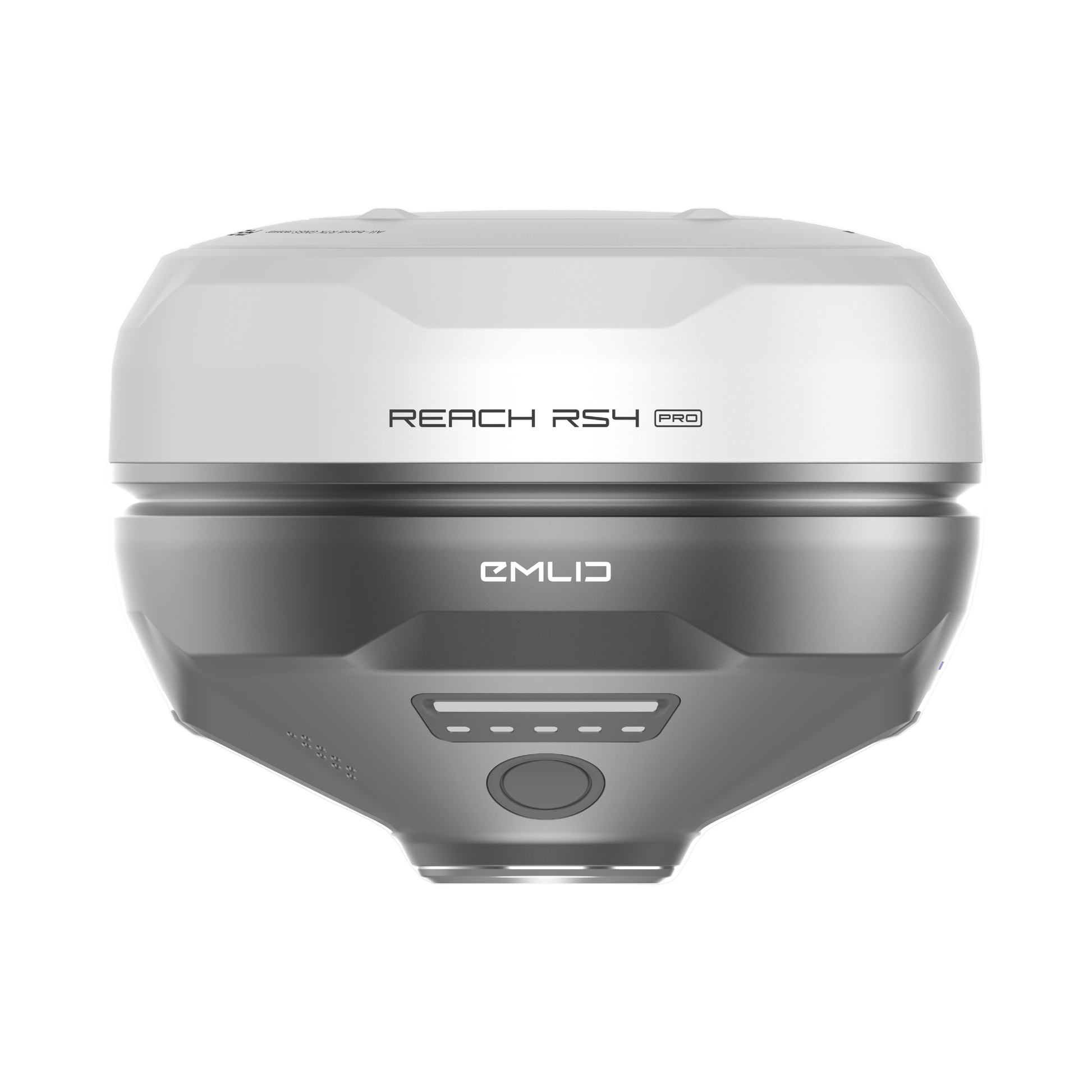

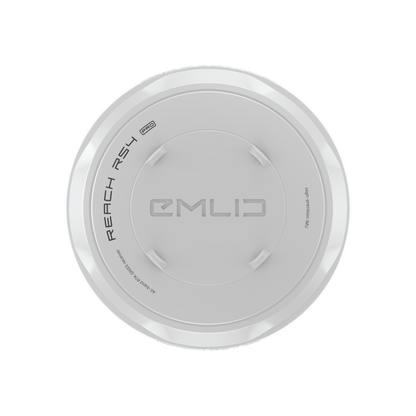

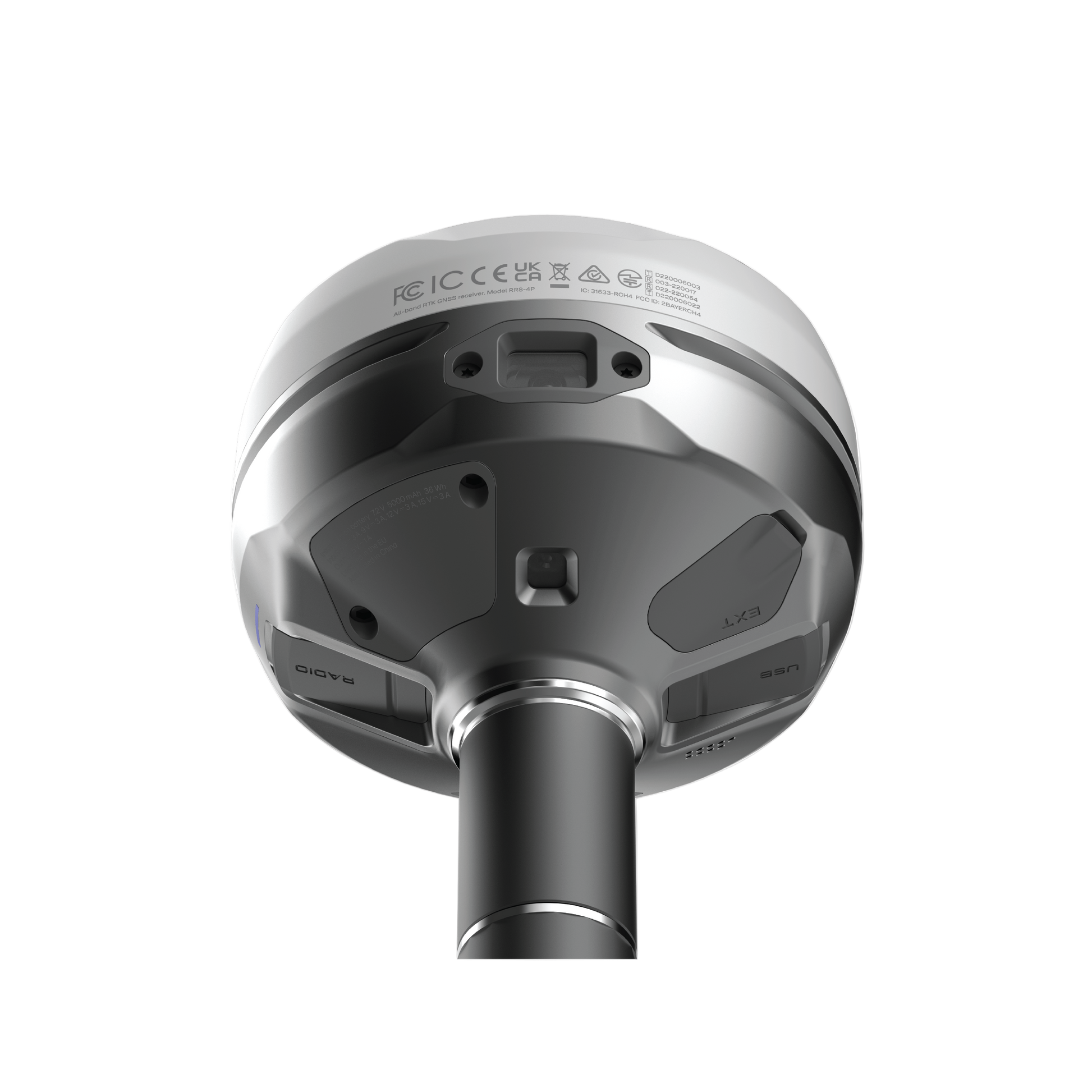

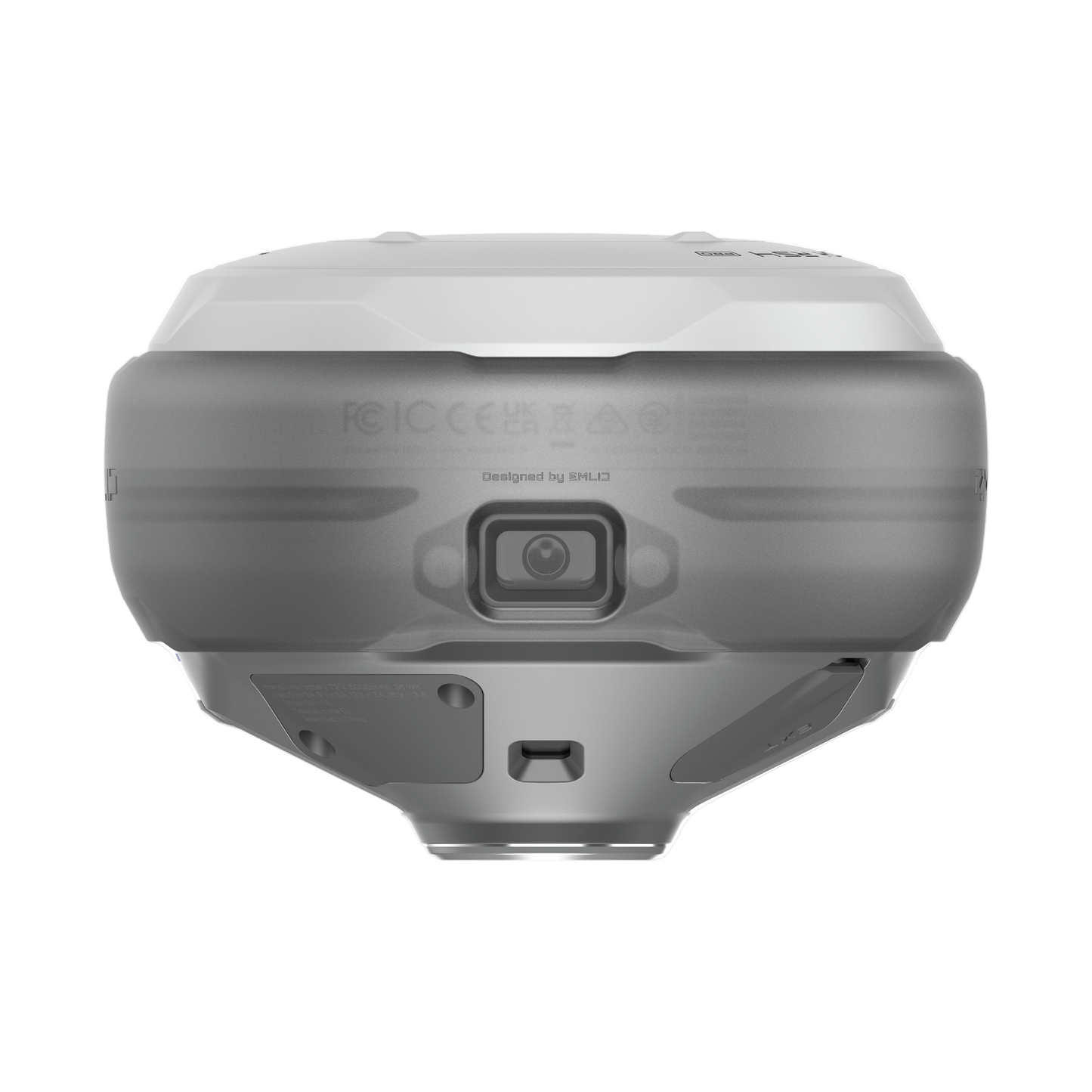

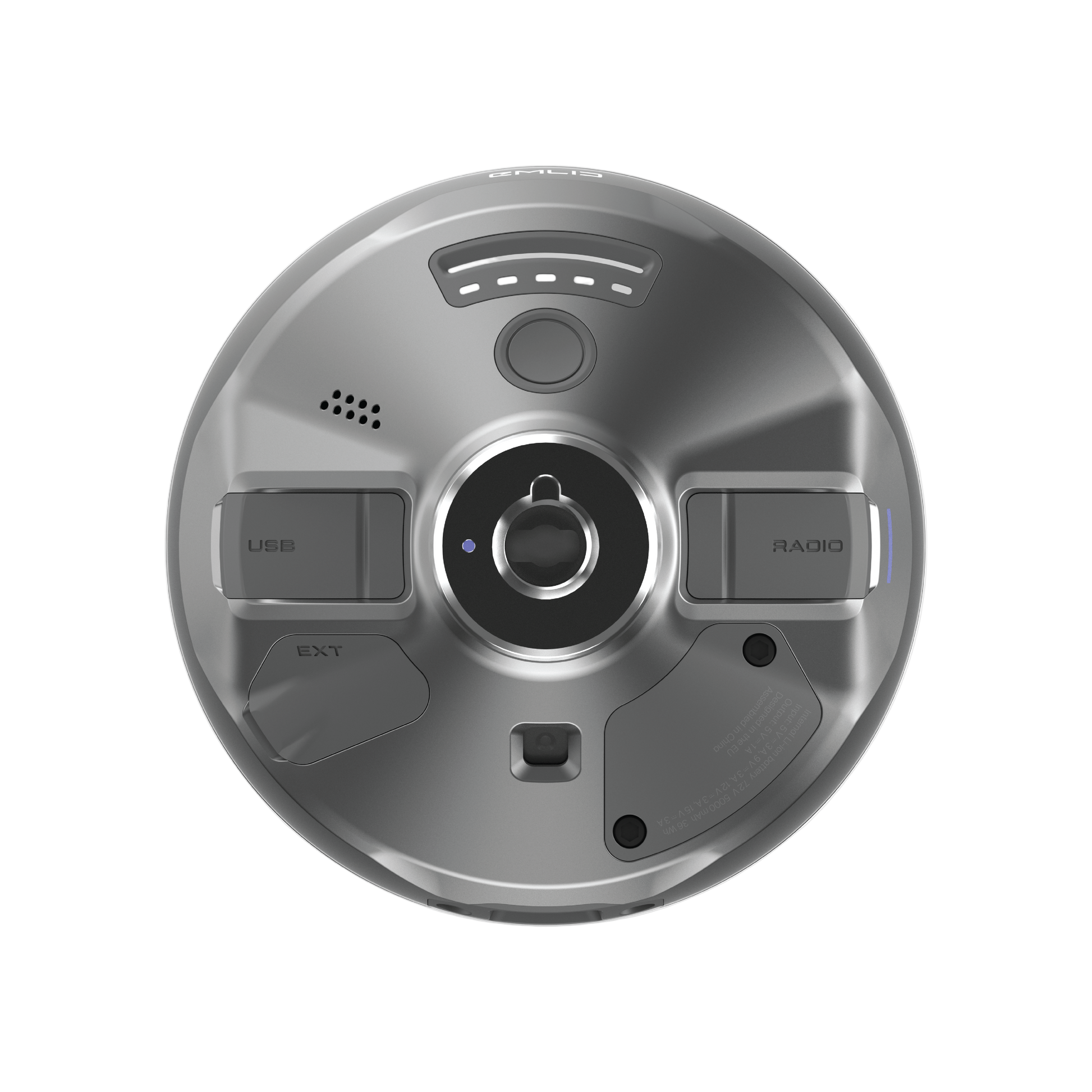

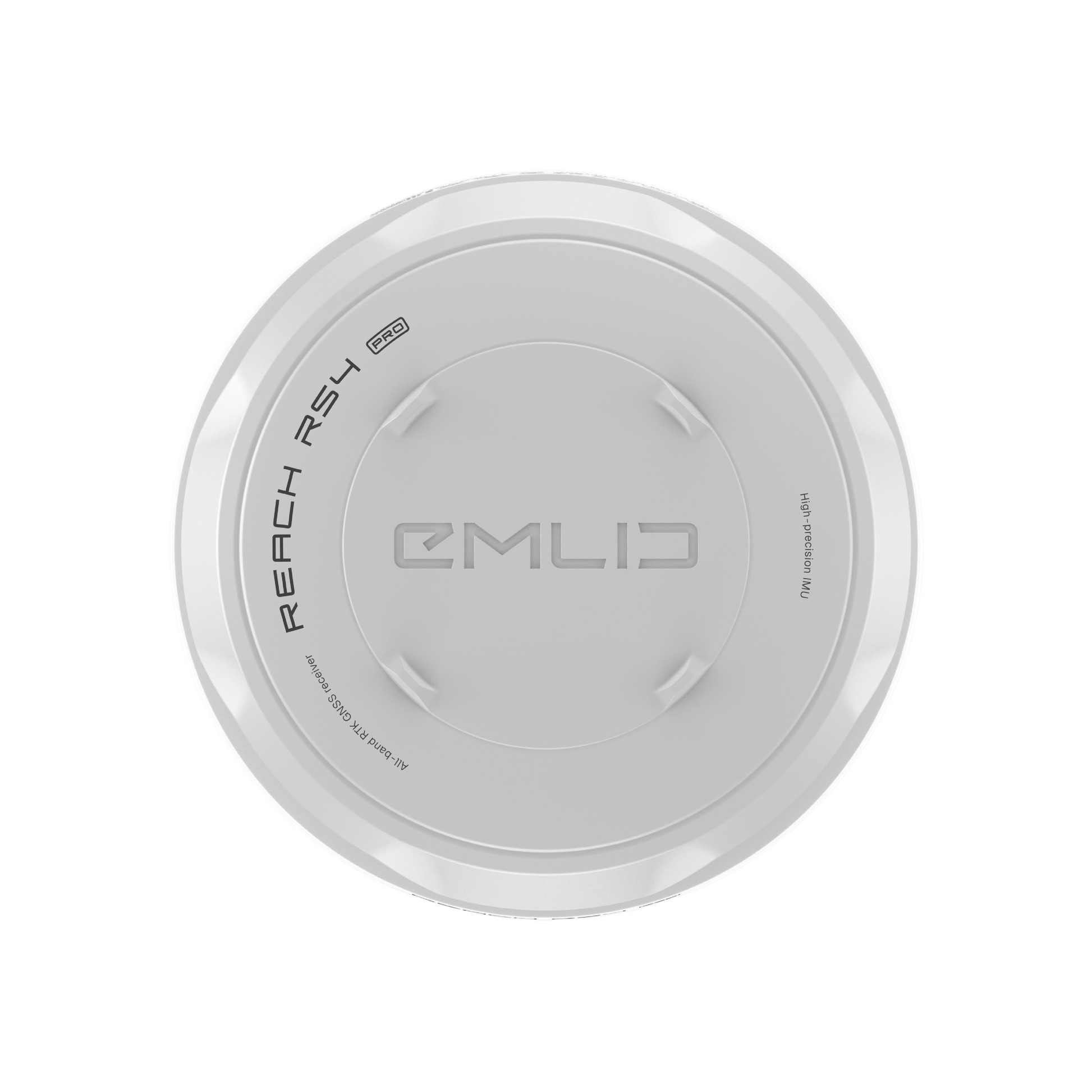

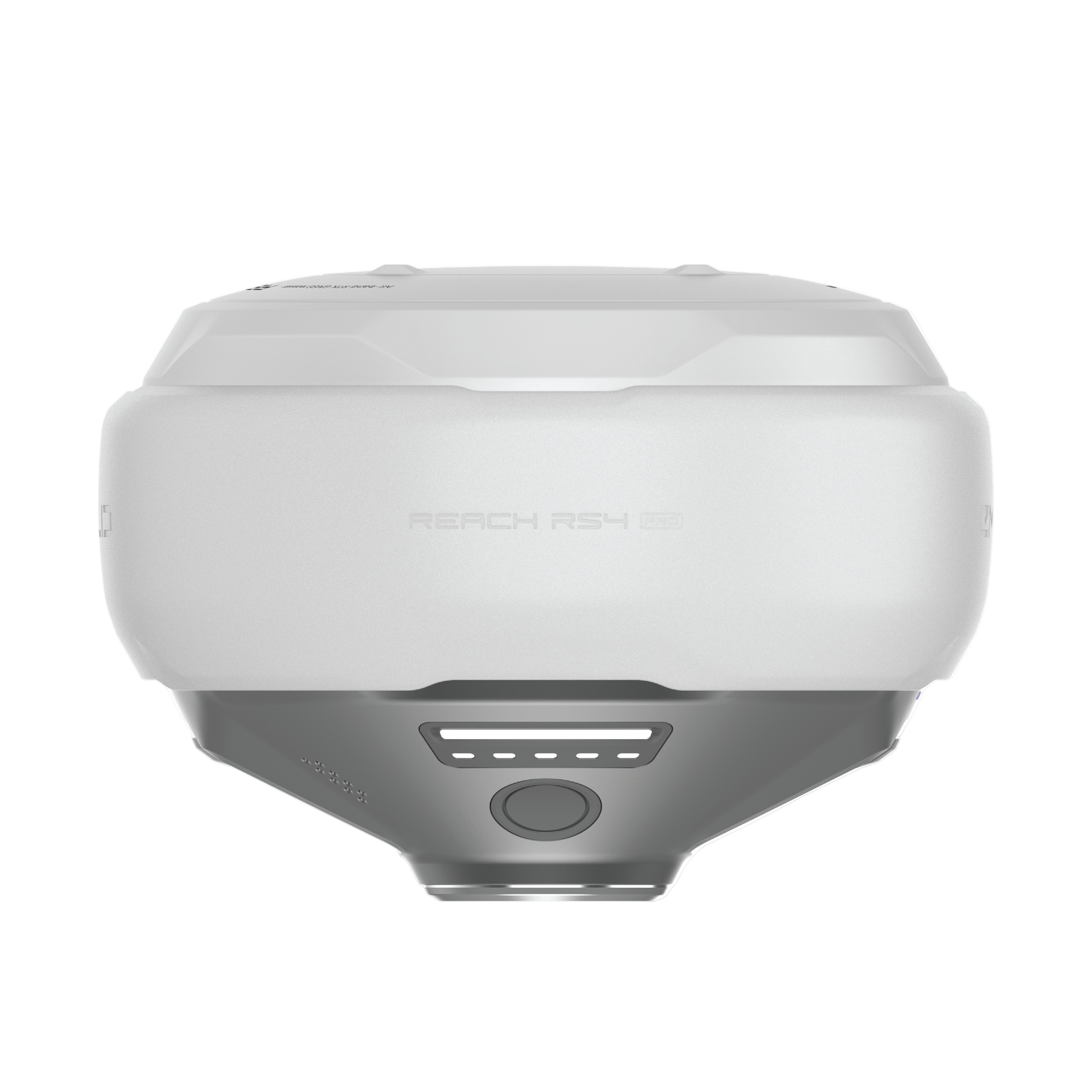

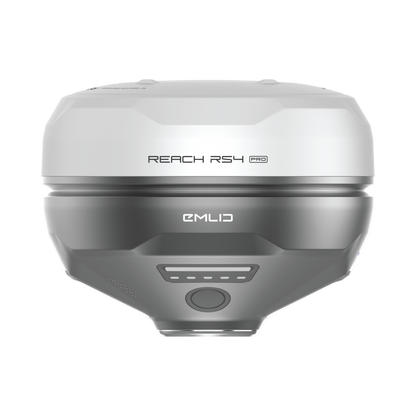

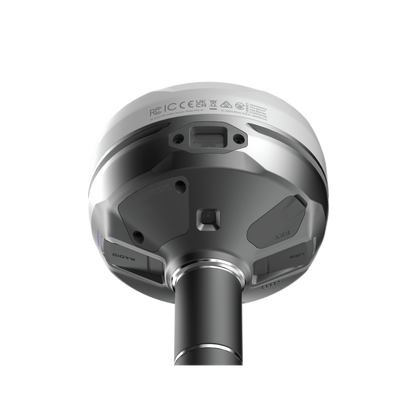

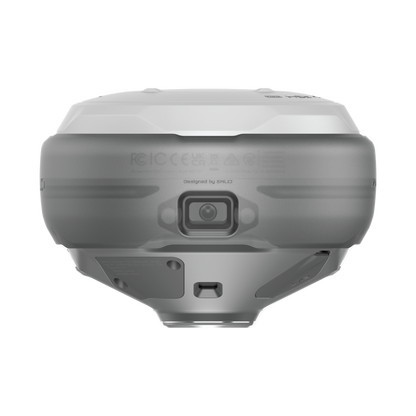

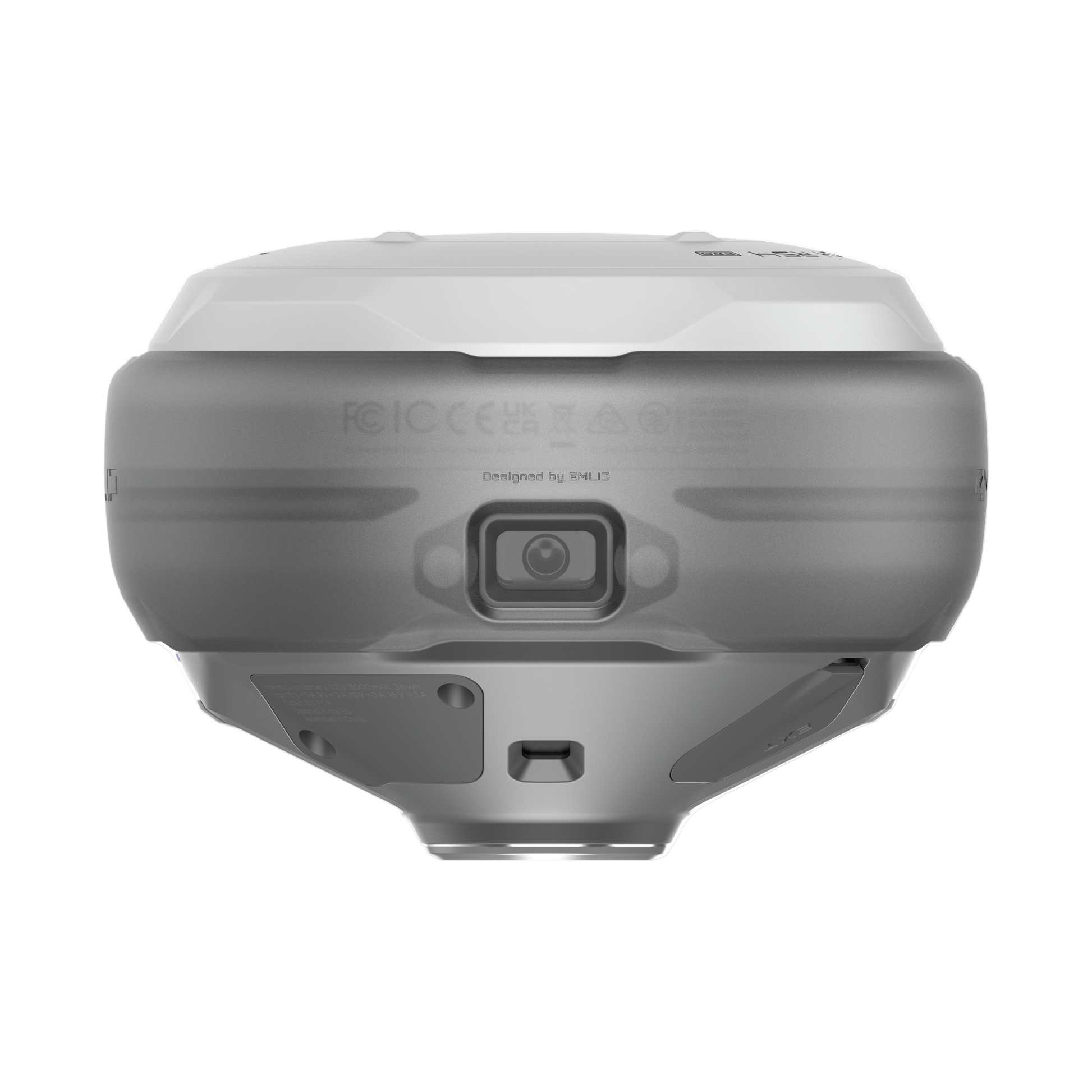

The Emlid RS4 Pro is our most advanced GNSS receiver, designed for demanding projects and professional surveyors who need maximum performance, speed, and precision.
Key Features
- Pro-level RTK accuracy for the most complex surveys
- Advanced tilt compensation for the fastest, most efficient point collection
- Ultra-fast fix times for challenging environments
- Rugged design built to handle long, intensive fieldwork
- Full Emlid Flow integration plus advanced workflow support
RS4 Pro is built for professional surveyors who need cutting-edge performance, enabling topographic, construction, and geospatial projects at the highest level of accuracy.
Specifications
Mechanical
| Dimensions | 128.6 x 128.6 x 99.3 mm |
| Weight | 920 g |
| Operating temperatures | -40 to +65 °C |
| Ingress protection | IP68 |
GNSS
| Signal tracked |
|
| Number of channels | 672 |
| Update rates | Up to 10 Hz |
Positioning
| RTK | H: 7 mm + 1 ppm V: 14 mm + 1 ppm |
| PPK | H: 5 mm + 0.5 ppm V: 10 mm + 1 ppm |
| Static | H: 4 mm + 0.5 ppm V: 8 mm + 1 ppm |
| Tilt compensation | RTK + 2mm + 0.3 mm/° |
| Convergence time | ~5 s typically |
Data
| Corrections | NTRIP, RTCM3 |
| Position output | NMEA, LLH/XYZ |
| Data logging | RINEX, NMEA, LLH/XYZ, UBX |
Connectivity
| LoRa radio | Frequency range | 868/915 MHz |
| Power | 0.1 W | |
| Distance | Up to 8 km | |
| UHF radio | Frequency range | 410 - 470 MHz |
| Protocols | TRIMTALK 450S** | |
| Modulation type | GMSK | |
| LTE modem | Regions | Global |
| Bands |
|
|
| SIM card | Nano-SIM | |
| Wi-Fi | 802.11a/b/g/n | |
| Bluetooth | Bluetooth 5.1 (BR/EDR + LE) |
|
| Ports | RS-232, USB Type-C | |
| Internal storage | 16 GB |
