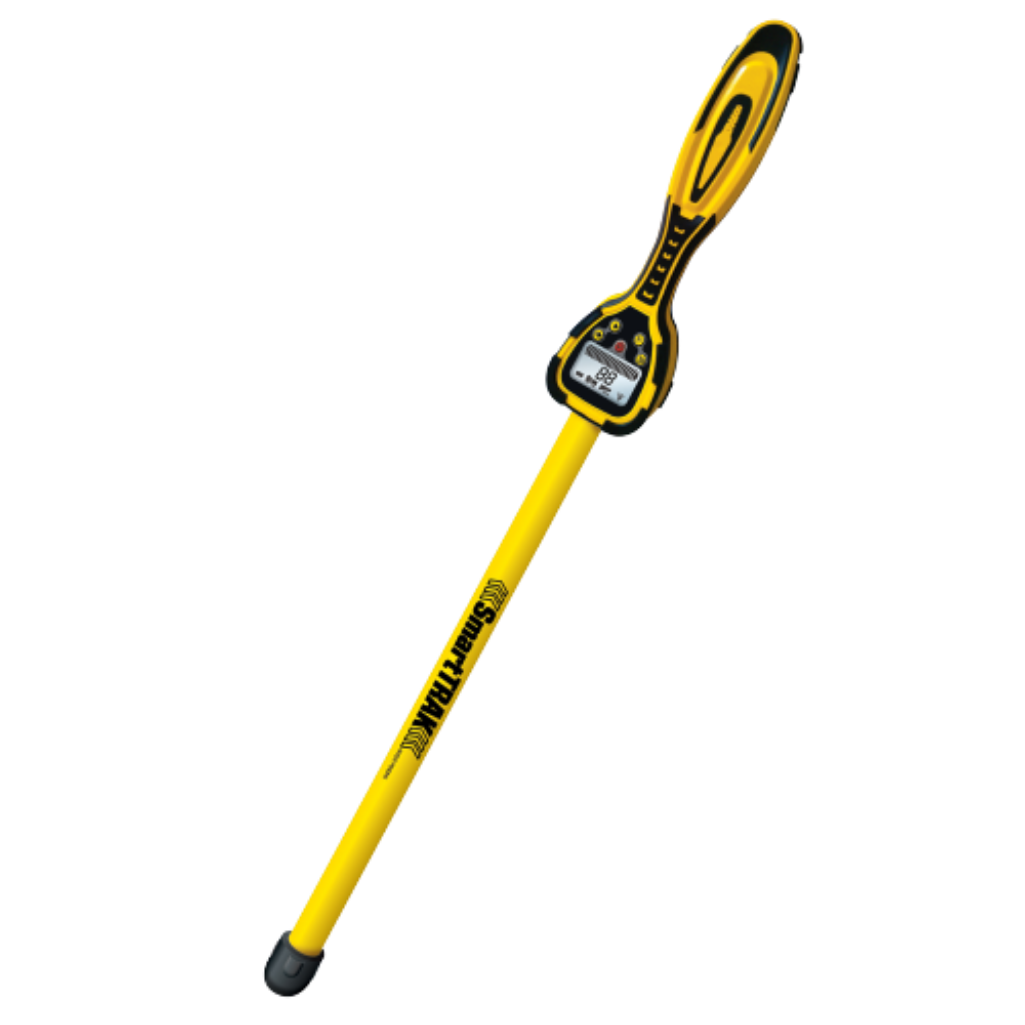

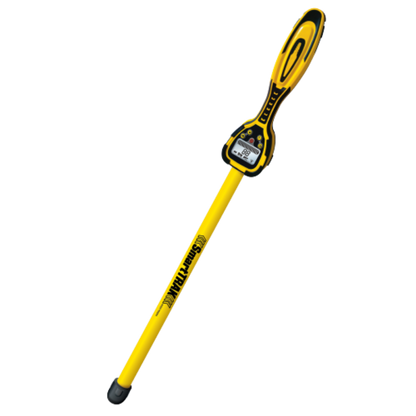

ST101 SmartTRAK Magnetic Locator

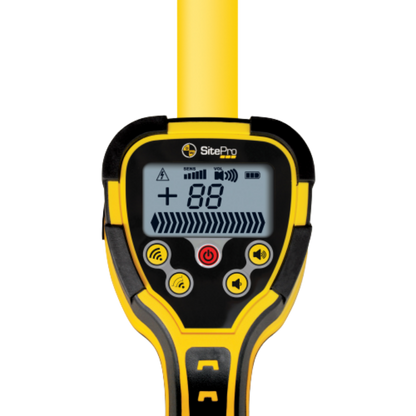

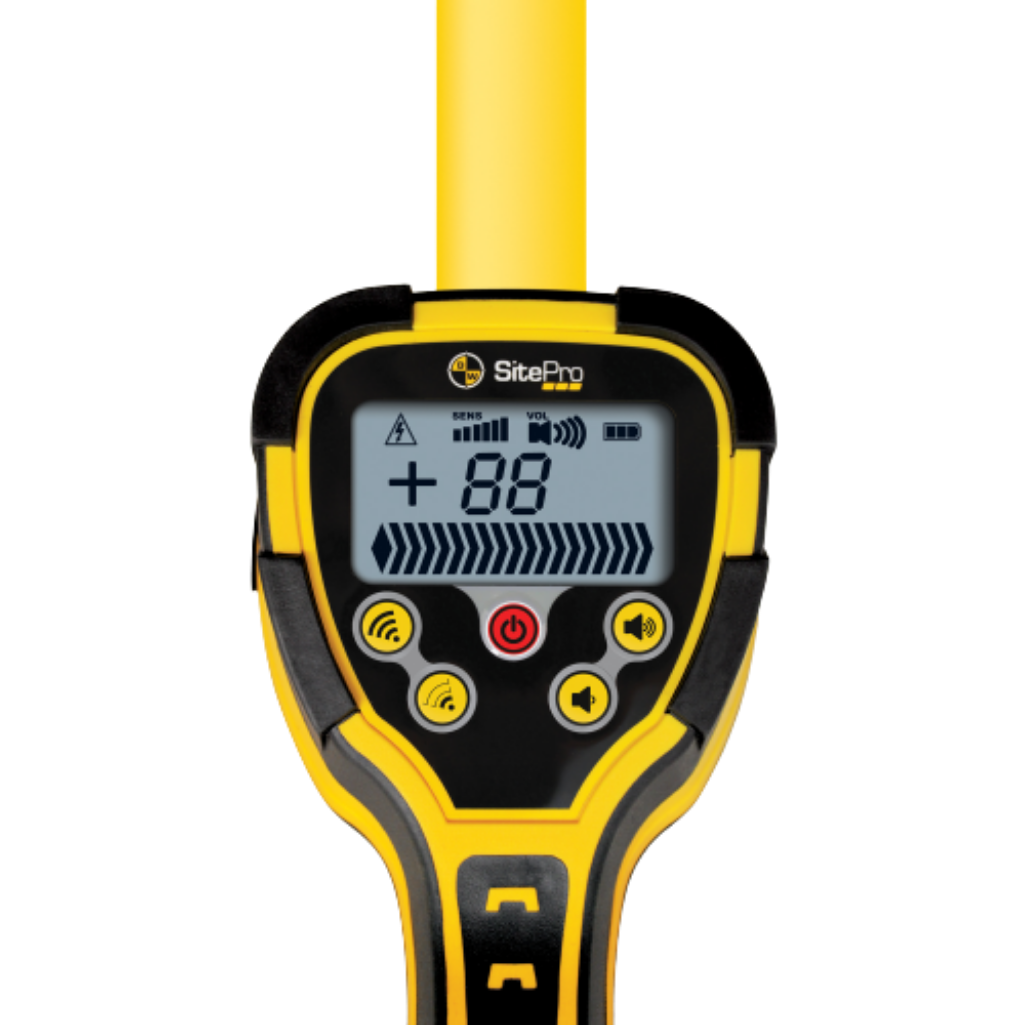

ST101 SmartTRAK Magnetic Locator Screen

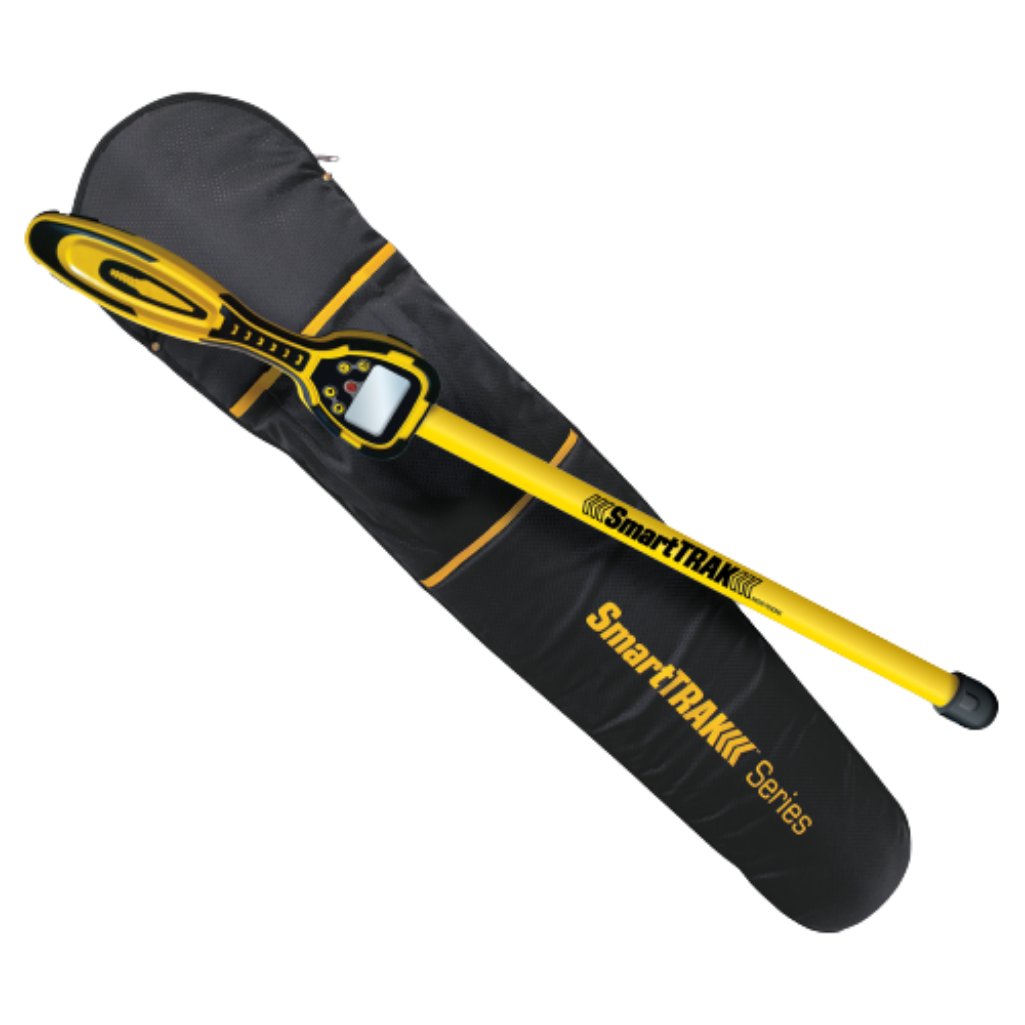

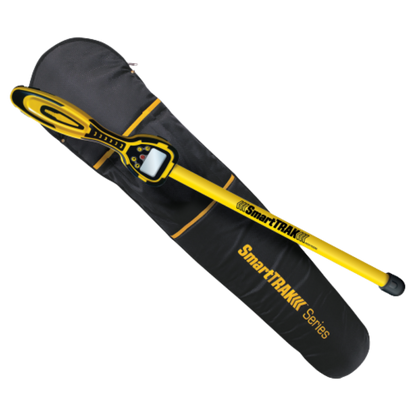

ST101 SmartTRAK Magnetic Locator with Carrying Case
  • Load image into Gallery viewer, ST101 SmartTRAK Magnetic Locator
  • Load image into Gallery viewer, ST101 SmartTRAK Magnetic Locator Screen
  • Load image into Gallery viewer, ST101 SmartTRAK Magnetic Locator with Carrying Case

ST101 SmartTRAK Magnetic Locator

Regular price
$940.00
Sale price
$940.00
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

The SmartTRAK is the smart choice for locating ferrous metal objects- manholes, steel covers, septic systems, corner survey markers, cast iron pipes, iron valves, and re-bar. The ST100 series feature one-handed operation with pinpoint accuracy and large visual display.

  • Precision-crafted superior ergonomics and balanced design for one-handed operation
  • Large LCD screen for visual search results 0-99 numeric indicator with signal strength bar graph, North/South polarity indicator, and battery level indicator
  • High-grade waterproof speaker is water resistant and dust proof to ensure years of dependable operation
  • Robust co-molded housing is water resistant and dust proof to ensure years of dependable operation
  • Waterproof tube (IP67) and tip for locating even in the toughest environments and weather conditions

Includes: Batteries, Padded Carrying Case, User Manual

Specifications

  • Audio Output: 10Hz frequency tone, increases with magnetic field strength
  • Visual Output: LCD – Numeric 0 – 99, signal strength bar graph
  • Gain (Sensitivity): 6 settings
  • Smart-Search Technology™ No
  • Modes: Standard
  • Power: Six “AA” alkaline batteries provides 50 hours (intermittent operation)
  • Operating Temp: ‐13° F to 140° F (‐25° C to 60° C)
  • Power: Six “AA” alkaline batteries provides 50 hours (intermittent operation)
  • Weight: 2.5 lb (1.13kg) with batteries
  • Environment: IP54 – plastic housing; IP67 – sensor tube to just below the plastic housing
