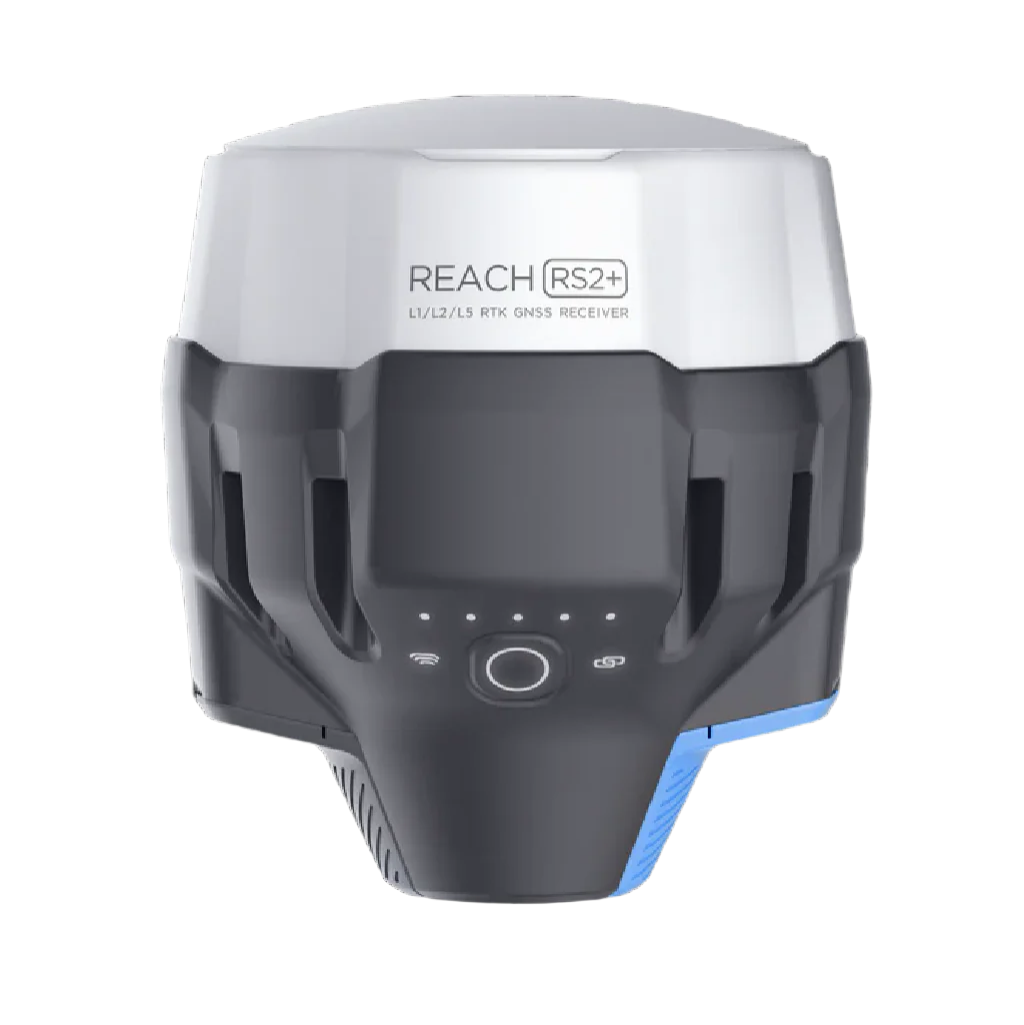

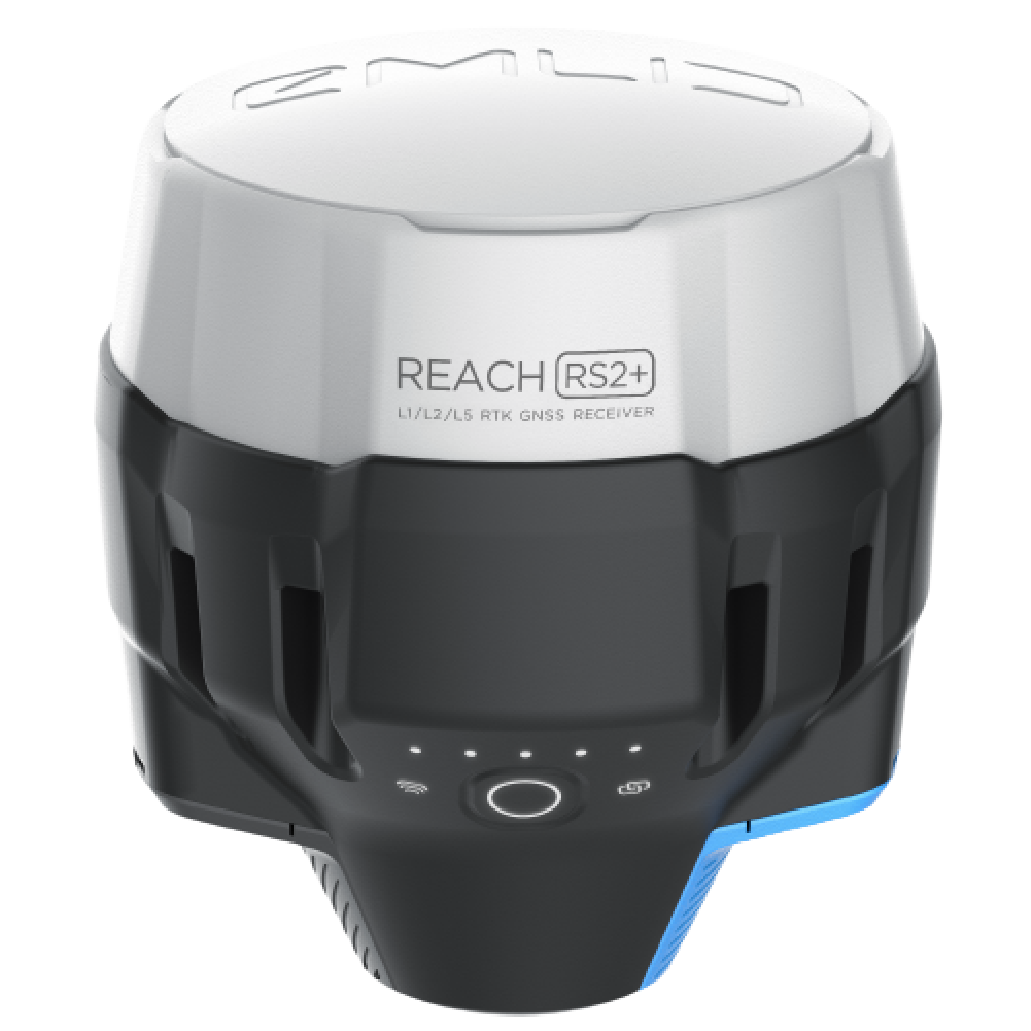

Emlid Reach RS2

Regular price
$1,899.00
Sale price
$1,899.00
Regular price
Sold out
Unit price
per



Gets a fix
in seconds

Reach RS2 gets a fixed solution in just seconds and maintains robust performance even in challenging conditions. Centimeter accuracy can be achieved on distances up to 60 km in RTK, and 100 km in PPK mode.

PPP
support

Reach RS2 gets a fixed solution in just seconds and maintains robust performance even in challenging conditions. Centimeter accuracy can be achieved on distances up to 60 km in RTK, and 100 km in PPK mode.



GPS, GLONASS, BeiDou,Galileo, and QZSS

L1OF, L2OF, L1C/A, L2C,E1B/C, E5b, B1I B2I



Built-in 3.5G modem

Reach RS2 features a power-efficient 3.5G HSPA modem with 2G fallback and global coverage. Now corrections can be accessed or broadcasted over NTRIP independently, without relying on Internet connection on your phone.

22 hours
on 1 charge

Up to 22 hours of autonomous work when logging data and up to 16 hours as a 3G rover, even in cold weather—no more need to carry spare batteries with you. Reach RS2 can charge from a USB wall charger or a power bank over USB-C.











Surveying
with ReachView

The easiest to use software for data collection that is available both for Android and iOS. With ReachView, you can collect and stakeout points and control all the features of Reach receivers, such as setting up a base station, logging RINEX data, and configuring NMEA output.


Point collection:
create projects, save points, and export in industry standard formats





Record each position as a point with centimeter precise coordinates.  Export projects and open them in GIS or CAD software like AutoCAD, ArcGIS, QGIS, and others.

Formats

| DXF, CSV, GeoJSON, ESRI
|
 Shapefile



Stakeout:
Find points' position on the ground












Stakeout is used to find exact physical locations of points.  They can be collected in ReachView or imported from other CAD or GIS software.

Process of stakeout in ReachView has two steps: map view and bulls-eye.  Map's purpose is to help you navigate to points on long distances.  When you get closer than 40 cm to the point, bulls-eye turns on to make it easier for you to visually match receiver and point.

Formats

| CSV, DXF, GeoJSONs

Logging in RINEX:
record raw data, position, and base correction logs

























Record raw data, position and base correction logs with an update rate up to 10 Hz.  Point collection and recording of RAW data are independent processes and can be used simultaneously.  ReachView has a simple and intuitive interface for logging configuration and control.

We provide our version of RTKLib for PPK.  It's free and can be downloaded from our docs.

| 16 GB

storage

| 160+ days

of logging at 1 Hz

PPP for Opus

RINEX raw data logs are compatible with PPP services so you can now get centimeter-precise results in any place on Earth.  Process RINEX files in an online service and get position with absolute accuracy.


Connectivity

Real-time position
streaming in NMEA

Reach provides data in standard NMEA that is used by most GIS apps.  Simply connect your device to Reach over Bluetooth or with a cable, and turn on "Position output" in ReachView.



Reach can turn on and off automatically

Reach is able to turn on and off in sync with an external battery connected over RS-232.  This helps when the power button is hard to reach.  For example, if the receiver is placed on the roof of a tractor.

Compatible apps

|  MachineryGuide, AgriBus-Navi,
|  Efarmer, Agripilot, and others

__________________________________________

Position streaming

Interfaces

|  RS-232, TCP, Bluetooth


NTRIP or another Reach as a base station

Reach RS2 needs a base station as a source of corrections.  That's a requirement for centimeter accuracy in RTK and PPK.  Base might be either another Reach RS2 receiver or an NTRIP service.  VRS is also supported.

Reach RS2 works seamlessly with other Reach receivers over any link.











Input and output corrections

Interfaces

|  TCP, LoRa, Bluetooth, RS-232,
|  NTRIP

Formats

|  RTCM3

__________________________________________

Max distance from a base

|  Over 60 km in RTK
|
100 km in PPK
|  Any place on Earth with PPP





Engineered to be tough
Reach RS2 is designed to work even in the most challenging environments

| IP67

RS2 is waterproof up to 1 m depth.  All connectors are completely sealed and protected from water and dust with silicone plugs.

| -20 C... +65C

We extensively tested Reach RS2 in conditions that simulate coldest winters and hottest summers.

| Polycarbonate body

Polycarbonate, an extremely durable material that is used in bulletproof glass, makes Reach RS2 impact-resistant.



Specifications

Reach RS2 Datasheet

Mechanical

  • Dimensions: 126 x 126 x 142 mm
  • Weight: 950 g
  • Operating temp: -20...+65C
  • Ingress protection: IP67 (water and dust)



Electrical

  • Autonomy: 16 hrs as 3.5G RTK rover, 22 hrs logging
  • Battery: LiFePO4 6400 mAh, 6.4V
  • External power input: 6-40 V
  • Charging: USB Type-C 5 V, 2 A
  • Certification: FCC, CE

Positioning

  • Static: H: 4mm +0.5 ppm V: 8mm + 1ppm
  • PPK: H: 5 mm + 0.5 ppm V: 10 mm + 1 ppm
  • RTK: H: 7 mm + 1 ppm V: 14 mm +1 ppm
  • Convergence time: ~5 s typically

Connectivity

  • LoRa radio
    • Frequency range: 868/915 MHz
    • Power: 0.1 W
    • Distance: Up to 8 km
  • 3.5G modem
    • Regions: Global
    • Bands: Quad-band, 850/1900,900/1800 MHz
    • SIM card: Nano-SIM
  • Wi-Fi: 802.11 b/g/n
  • Bluetooth: 4.0/2.1 EDR
  • Ports: RS-232, USB Type-C

Data

    • Corrections: NTRIP, RTCM3
    • Position output: NMEA, LLH/XYZ
    • Data logging: RINEX with events with update rate up to 20 Hz
    • Internal storage: 16 GB 160+ days of logging at 1 Hz












GNSS

    • Signal tracked: GPS/QZSS L1C/A, L2C GLONASS L1OF, L2OF BeiDou B1I, B2I Galileo E1-B/C E5b
    • Number of channels 184
    • Update rates 10 Hz GNSS
    • IMU 9DOF
