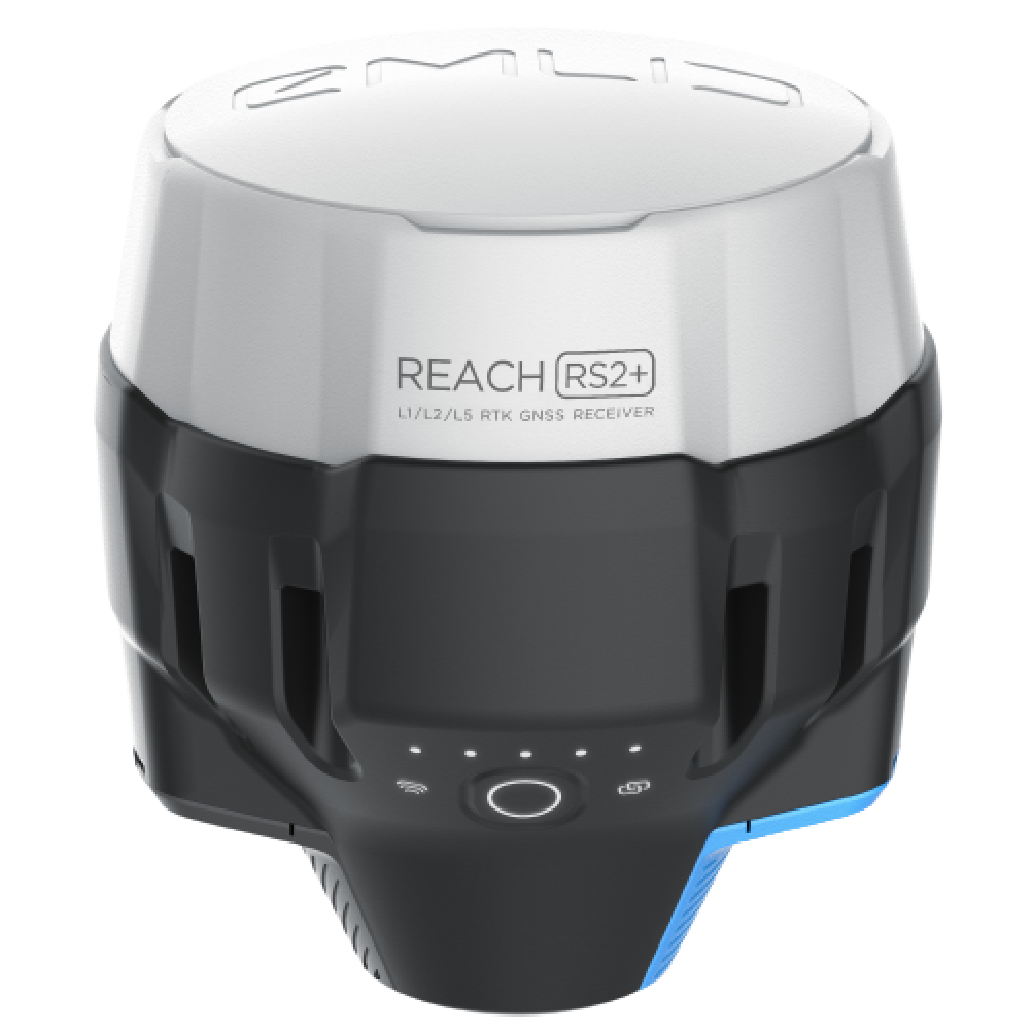

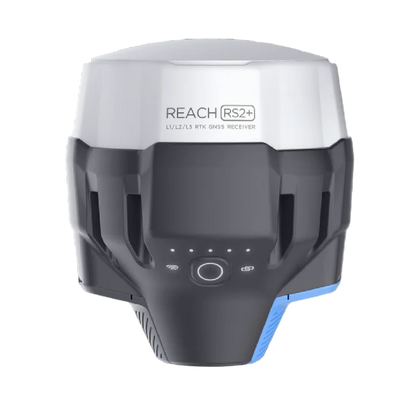

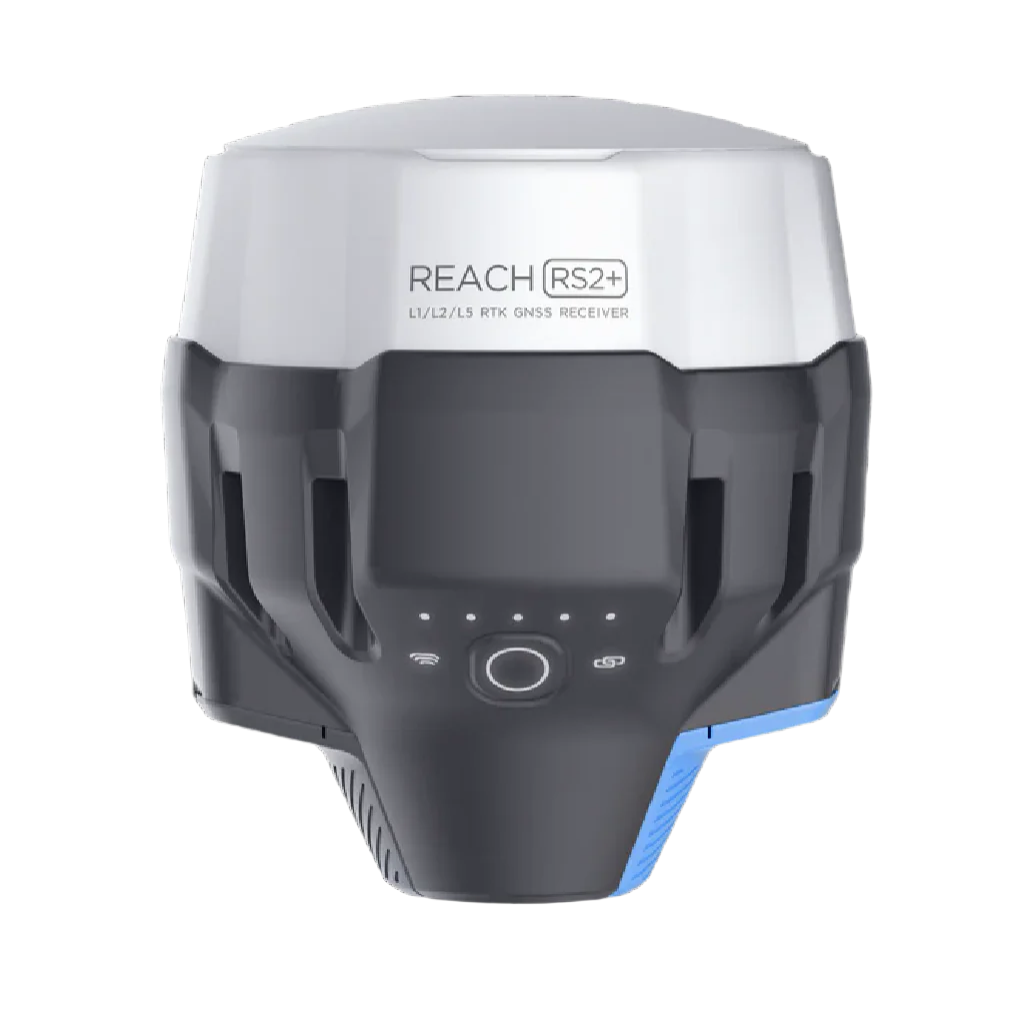

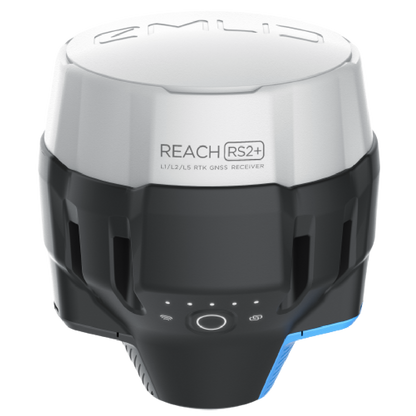

Emlid Reach RS2+

Name: Emlid Reach RS2+
Brand: Emlid
Price: 2699.0 USD
Availability: InStock

From $2,699.00

Add Emlid Flow +Survey Annual No. I will use Emlid Flow Free Yes. Add +Survey Annual ($240)

Carrying Case Individual Soft Case Hard Case - $225

$2,699.00

$2,699.00 ~~$2,499.00~~

Shipping calculated at checkout.

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

Free Shipping

Add Tilt Compensation with XTILT

30 Day No Hassle Returns

NTRIP Network Correction Instruction by State

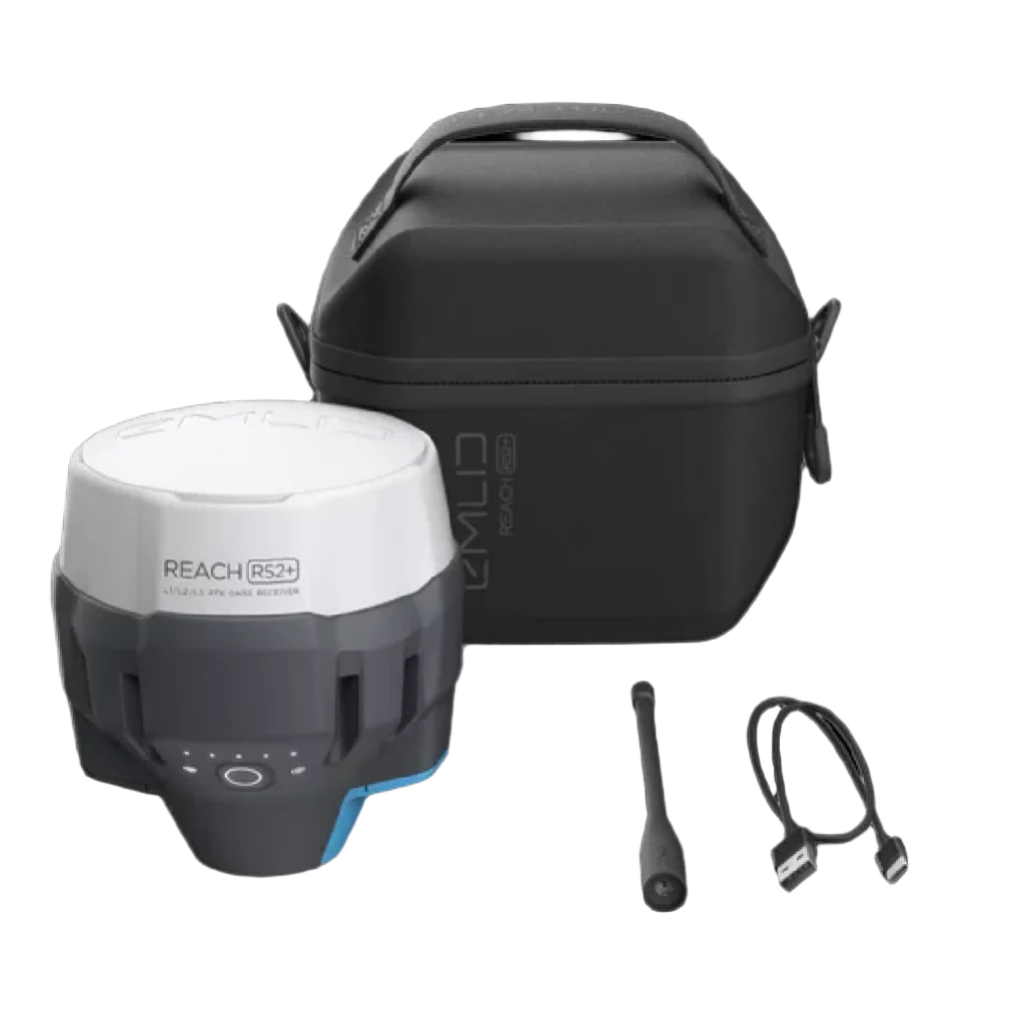

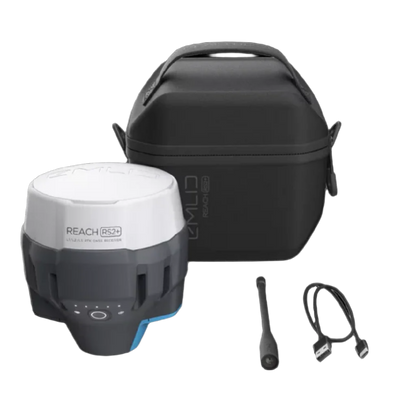

Carrying Case Options: Choose Individual soft case for the soft case option that is included standard with the RS2. Choose Hard Case option for the compact Emlid Reach RS2 Hard Carrying Case.

Data Collector Options: The Emlid Flow application is available for download for free on both iOS and Android. Choose None if you will bring your own data collector and software. Choose E38 Vivid Tablet with Mount for a tablet that works in any environment. Choose one of the FieldGenius options for one perpetual license of MicroSurvey FieldGenius for Android.

Data Collector Comparison

Support Options: Choose email support and receive unlimited email support, along with 30 days of phone support. Choose Unlimited Phone Support for 1 year of phone support.

A Quick Fix

Tracking GPS, GLONASS, Galileo and BeiDou signals, the RS2 can provide a fixed solution in seconds and maintain accuracy in corridors, under tree canopy, and in other challenging environments. Check out this RS2 Accuracy Test for more.

OPUS PPP
Support

Get centimeter-precise results in any place on Earth. Process RINEX files in an online service and get position with absolute accuracy. Compatible with Online Positioning User Service, Leica Spider Business Center Post Processing and more.

GPS, GLONASS, BeiDou, Galileo, and QZSS

L1OF, L2OF, L1C/A, L2C,E1B/C, E5b, B1I B2I

Built-in UHF Radio

The RS2 includes an internal 915 Mhz UHF LoRa radio, with line of site range up to 8 km. Environment is a significant factor in the range of the LoRa radios. Obstructions may decrease the range, while some users have noted range exceeding 8 km.

Long Lasting

On a single charge, the Reach RS2 lasts up to 22 hours, even in colder weather. When a charge is needed, the RS2 can use a wall charger or a power bank over USB-C. Its durable design (IP67) allows it to perform in even the most inclement conditions.

Accuracy - Side-by-Side Specs

Accuracy (mm)	Emlid Reach RS2	Topcon Hiper VR	Trimble R10	Leica GS18
Static Horizontal	4 + 0.5 ppm	3 + 0.1 ppm	3 + 0.1 ppm	3 + 0.1 ppm
Static Vertical	8 + 1 ppm	3.5 + 0.4 ppm	3.5 + 0.4 ppm	3.5 + 0.4 ppm
RTK Horizontal	7 + 1 ppm	10 + 1 ppm	8 + 1 ppm	8 + 1 ppm
RTK Vertical	14 + 1 ppm	15 + 1 ppm	15 + 1 ppm	15 + 1 ppm

Data Collector Compatibility

Data Collector Comparison

There are a wide range of data collectors that are compatible with the RS2, many are Bluetooth compatible. The most popular data collectors for the Reach RS2 are:

Emlid Flow is Now Available

User-friendly software for data collection created by Emlid for Android and iOS.

Features Include:

Coordinate systems support. More than a thousand coordinate systems are available. The app has built-in support for grid and geoid transformations.
Different units of measurement. The pole height and stakeout distance automatically work in feet or meters, depending on the project’s coordinate system.
Ability to handle complex projects. Easily load thousands of points and smoothly control the map pans and zooms.
Storing the data in the app. You can now access your projects at any time with no need to turn on the receiver.
Simple data collection. Collect points by averaging or with just one click.
Quick data export. Export and share collected data promptly using any file sharing app on your phone.
Switching NTRIP profiles. You can easily switch between multiple NTRIP profiles – all the credentials are stored on the phone.

Technical Specification Sheet for Reach RS2+

Customer Success Story: McSteen Land Surveyors

E38 Survey Solutions is invested in its customers’ success. Because of this, we offer extended support packages for the Emlid Reach RS2 and RS+. Learn more here.

Didn’t find what you were looking for? Check our FAQs section on common questions regarding the RS2.
